But the terminology gets murky fast. Is "vitrified tile" the same as porcelain? Is porcelain just fancy ceramic? Architects, designers, and homeowners often use these terms interchangeably, and that confusion can lead to the wrong product on the wrong project.
This guide breaks down what vitrification actually means, how porcelain differs from standard ceramic, and the four common types of vitrified tile you'll encounter when specifying a project.
Key Takeaways
- Vitrification fires clay into a dense, glass-like body with very low porosity
- Water absorption rate — not appearance or price — is the real technical line between porcelain and ceramic tile
- Vitrified porcelain comes in four main types: full body, GVT, PGVT, and double charge
- Match the type to traffic levels, moisture exposure, and design goals
- SpecCeramics can help match the correct product to the application before installation begins

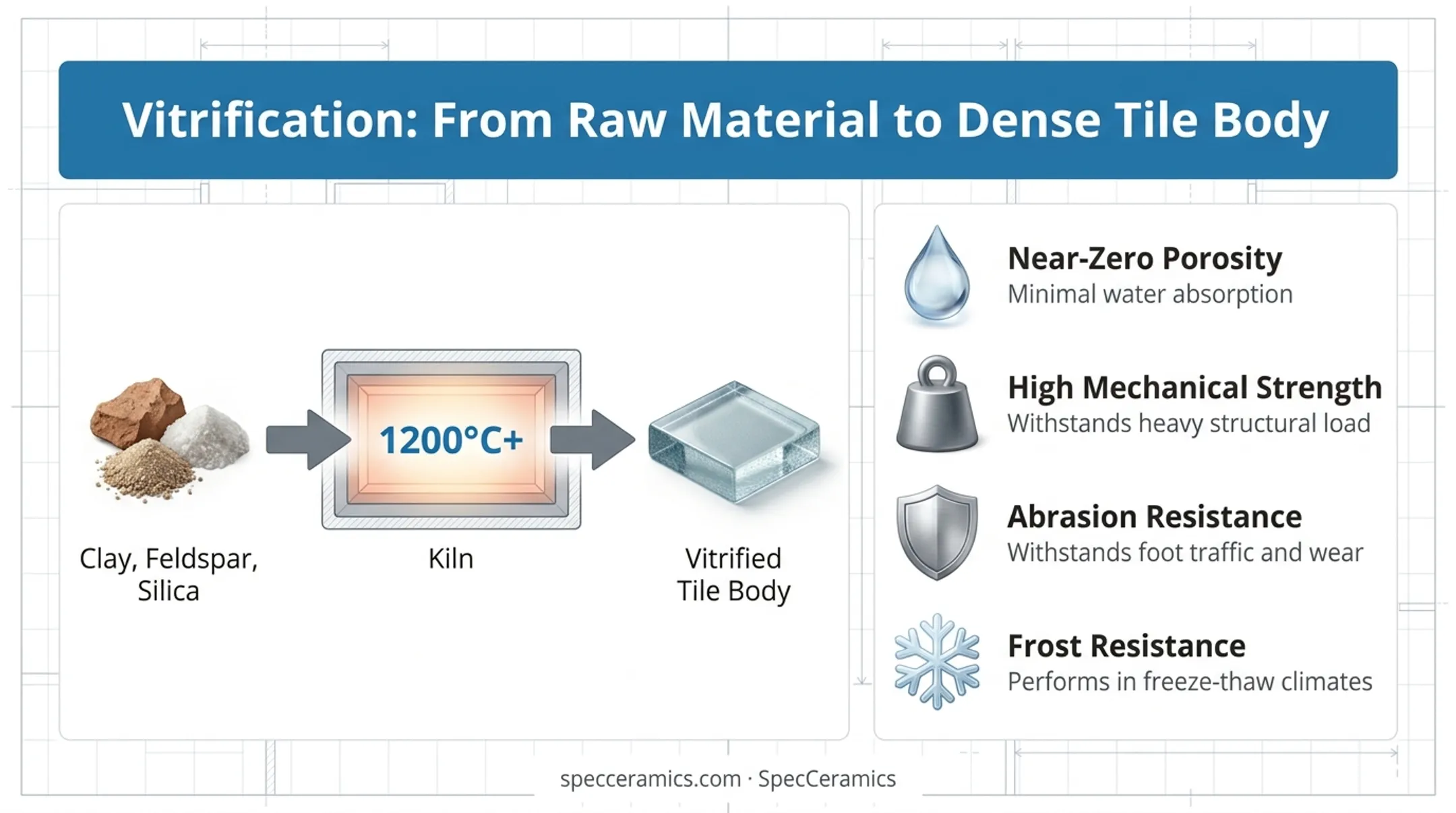

What Does It Mean When a Tile Is Vitrified?
Vitrification happens when a ceramic body is fired at high temperatures (often above 1200°C / about 2190°F) until the clay, feldspar, and silica fuse into a dense, glass-like mass. The result is a tile with almost no open pore structure left to absorb water or stain.
That density isn't just a marketing point. It's measurable. ISO 13006 defines porcelain tile as fully vitrified, with water absorption of 0.5% or less by mass, tested under ISO 10545-3. Many manufactured porcelain products land well under that threshold; some report averages closer to 0.1%.
The Properties Vitrification Produces
A fully vitrified body typically delivers:
- Near-zero apparent porosity
- High mechanical strength (minimum modulus of rupture around 35 N/mm² per EN ISO 10545-4)
- Strong abrasion resistance (deep abrasion capped at 175 mm³ under EN ISO 10545-6)
- Frost resistance, verified through freeze-thaw testing per ISO 10545-12
Modern porcelain production traces back to Italian single-fire innovations of the 1980s, when manufacturers began compressing what used to be a multi-step firing process into one efficient cycle. That shift made dense, consistent tile bodies far more affordable to produce at scale, which is part of why porcelain dominates today's specification market.
Vitrification matters for both floors and walls, but the stakes are higher underfoot. A wall tile rarely faces foot traffic, standing water, or freeze-thaw cycles. A floor tile in a hospital corridor or an outdoor patio does—and that is where a fully vitrified body proves its value.

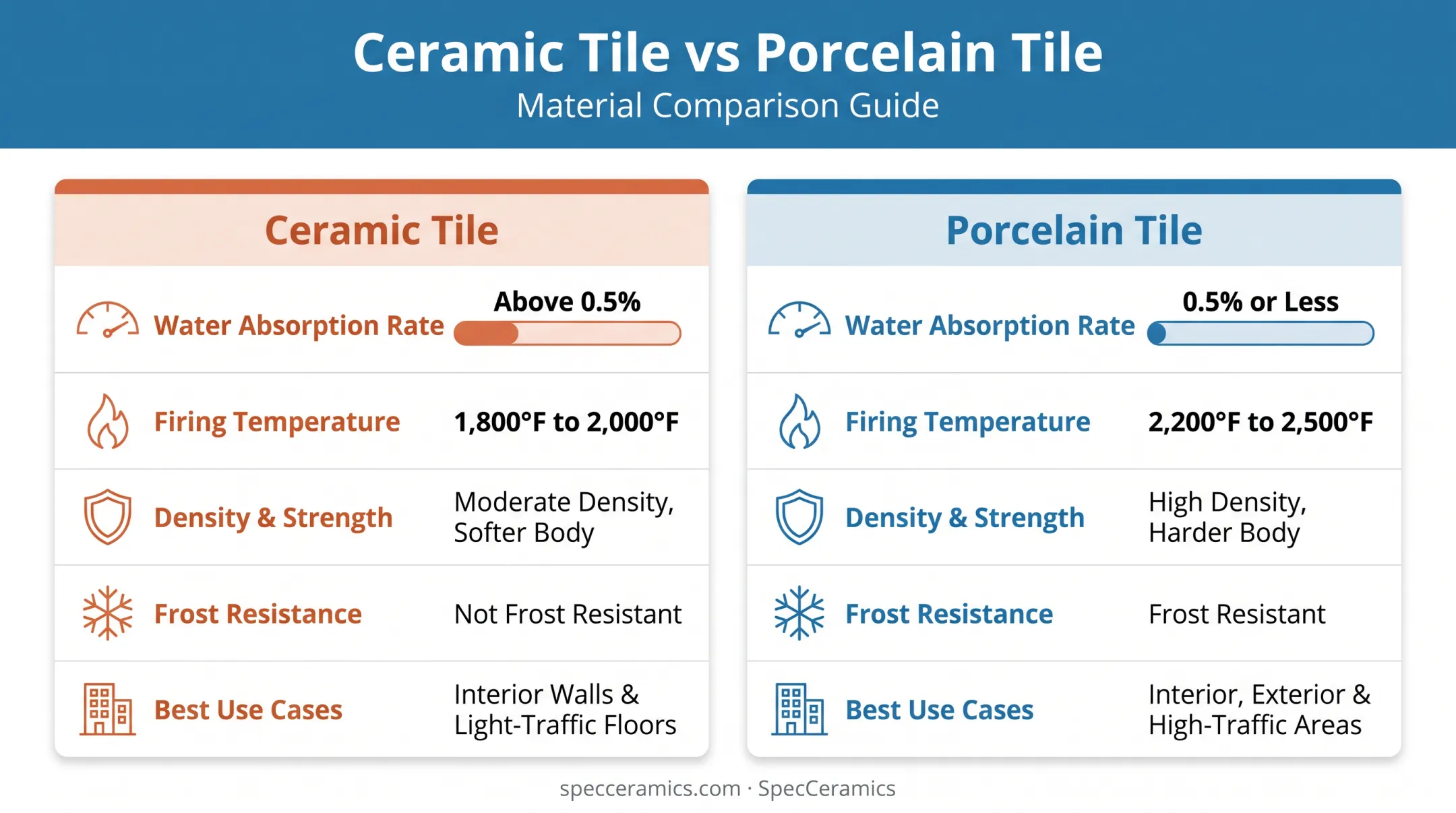

Porcelain vs. Ceramic vs. Vitrified Tile: Key Differences
Here's the part that trips people up: "vitrified" isn't a separate material category. It's a description of what happens during firing. Porcelain tile is, technically, a vitrified tile — just one made from finer clays and fired to a stricter absorption standard.
Ceramic tile, by contrast, is the broader family. ISO 13006 describes it simply as a clay-based slab, pressed, dried, and fired at temperatures sufficient to develop the needed properties. That leaves plenty of room for variation — some ceramic tiles are fired at lower temperatures and retain more porosity than porcelain ever would.
Comparison at a Glance
| Attribute | Ceramic Tile | Porcelain Tile |
|---|---|---|
| Water absorption | Above 0.5% (varies) | 0.5% or less (ISO 13006/EN 14411 BIa) |
| Firing temperature | Generally lower | Typically 1200°C+ |
| Density/strength | Lower | Higher (min. 35 N/mm² modulus of rupture) |
| Frost resistance | Not guaranteed | Usually yes, confirmed per product |
| Best use | Light residential, walls | Residential through heavy commercial, interior and exterior |
One caution: not every tile marketed as "vitrified" actually meets a true low-absorption standard. The word gets used loosely in sales materials. If frost resistance or heavy traffic durability matters for your project, ask for the ISO 10545-3 or ASTM C373 water absorption test result, not just the label on the box.

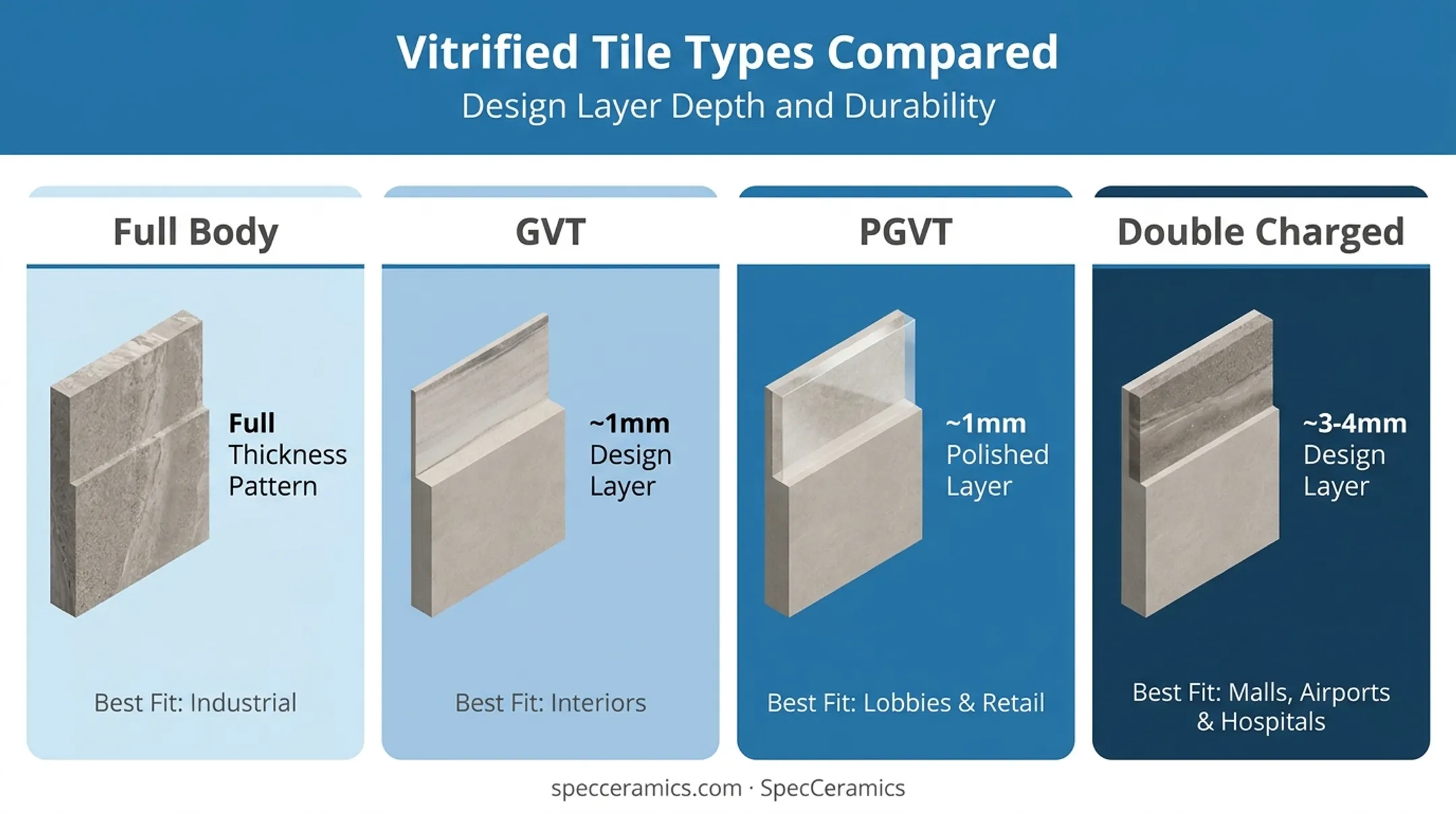

The Four Types of Vitrified Tiles
Once you've settled on porcelain, the next decision is which construction type fits the application. These four categories describe how the tile is made and finished, not separate standards classes, so always confirm specs against the manufacturer's data sheet.
Full Body Vitrified Tiles Color runs through the entire tile thickness, not just the surface. If you chip one, the color underneath matches the face. This makes full-body tile highly resistant to visible wear, which is why it shows up in high-traffic commercial floors, driveways, and industrial settings.
Glazed Vitrified Tiles (GVT) A vitrified base gets a printed or sprayed design layer on top, often around 1mm thick. GVT delivers strong visual variety (stone looks, wood looks, patterns) at a lower cost than full-body options. It suits low- to medium-traffic interiors: bedrooms, bathrooms, kitchens, office spaces.
Polished Glazed Vitrified Tiles (PGVT) PGVT starts as GVT, then the surface is mechanically polished to a glossy finish. It's a popular choice for lobbies and retail spaces where shine matters. Keep in mind polishing changes slip resistance, so it's not always the right call for wet areas.
Double Charged Vitrified Tiles Two pigmented layers get pressed together, creating a design layer roughly 3-4mm deep, thicker than GVT's printed surface. That extra depth adds durability without sacrificing design flexibility, making it a common choice for malls, airports, hospitals, and restaurants.
| Type | Design / wear layer | Best fit |
|---|---|---|
| Full body | Color through the full thickness | High-traffic commercial, driveways, industrial |
| GVT | ~1mm glazed or printed design | Low- to medium-traffic interiors |
| PGVT | Polished GVT surface | Lobbies and retail (check wet-area slip ratings) |
| Double charged | ~3–4mm pigmented design layer | Malls, airports, hospitals, restaurants |
Each type suits a different mix of traffic, moisture, and aesthetic goals. SpecCeramics' showroom and design-library resources let architects and designers compare these side by side before finalizing a spec.
Where Vitrified Porcelain Tiles Perform Best
Vitrified porcelain holds up in demanding environments:
- Commercial lobbies and retail floors: heavy foot traffic without frequent replacement
- Healthcare facilities: low porosity resists staining and supports hygiene protocols
- Outdoor and patio applications: frost resistance through freeze-thaw cycles; full-body options handle direct exposure
- Residential kitchens and bathrooms: stone-look and wood-look porcelain deliver a similar aesthetic with less upkeep than the natural material
Full-body porcelain tiles carry color and pattern all the way through. That makes them suitable for everything from a residential entryway to high-traffic commercial or industrial floors.
For projects in these settings, SpecCeramics has specified ceramic, stone, and terrazzo surfaces for commercial construction and architectural work since 1986. Coverage spans California, Arizona, Nevada, Utah, Colorado, and Hawaii, with virtual support for clients elsewhere in the country.

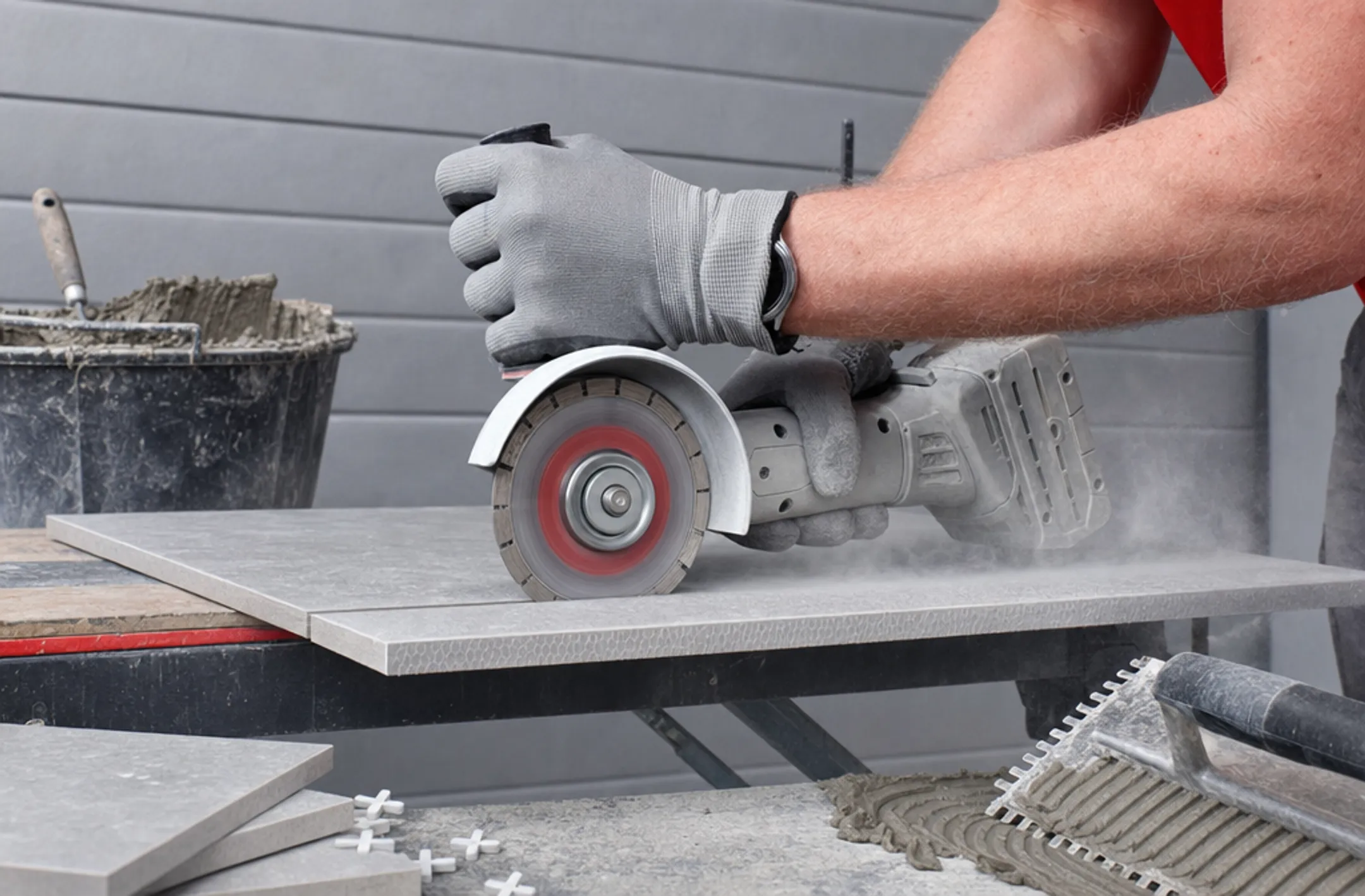

Installation and Maintenance Considerations
The same density that makes porcelain durable also makes it trickier to install than standard ceramic.
Installation notes:
- Use a C2 cement adhesive rated for porcelain's low absorption, matched to the tile's water absorption rate
- Diamond cutting tools are necessary; standard blades struggle with porcelain's hardness
- Joint width: minimum 3mm for non-rectified tile, 2mm for rectified tile
- The substrate must be stable, dry, and flat before installation begins
Maintenance stays simple. Low porosity means these tiles resist staining and clean up with little effort. Mild cleaning solutions work fine; avoid wax, oil-based, and abrasive cleaners.
Because adhesive and tooling requirements shift by product, consult a showroom or sales representative on substrate prep before ordering. SpecCeramics' team can walk through those specifics for a given tile selection and project type.
Frequently Asked Questions
What does it mean when a tile is vitrified?
Vitrification is a high-temperature firing process that fuses clay, feldspar, and silica into a dense, glass-like body with very low water absorption. The result is a stronger, less porous tile than standard fired ceramic.
What are the key differences between porcelain and vitrified tiles?
Porcelain is a type of vitrified tile made from finer materials and fired to under 0.5% water absorption. All true porcelain is vitrified, but not every vitrified tile meets porcelain's stricter standard.
What's the difference between ceramic and vitrified tiles?
Ceramic tile is a broader category, often fired at lower temperatures with higher porosity. Vitrified tile describes a denser, more durable outcome from higher-temperature firing, with porcelain as its most refined example.
What are the four types of vitrified tiles?
Full body, glazed vitrified (GVT), polished glazed vitrified (PGVT), and double-charged vitrified tiles. Each differs in how the design layer is applied and how deep it runs into the tile.
How do I choose the right vitrified tile for my project?
Match the tile to traffic level, moisture exposure, and design goals: full body and double-charged suit heavy-use areas, while GVT and PGVT fit lower-traffic interiors. A specifier or showroom consultation helps narrow the options quickly.
Are vitrified porcelain tiles suitable for outdoor use?
Yes. Low water absorption typically supports frost resistance, and full-body porcelain in particular holds up to freeze-thaw cycles and heavy exterior wear. Always confirm the manufacturer's exterior rating before specifying.
