Many architects and designers still misread DCOF ratings, treating a single number as a blanket safety guarantee. That misunderstanding leads to costly change orders, failed inspections, and hazardous flooring in bathrooms, kitchens, and exterior walkways.
This guide breaks down what DCOF actually measures, how it compares to SCOF and R-ratings, what the ANSI thresholds mean for each application, and how to specify tile correctly the first time.
Key Takeaways
- DCOF measures dynamic slip resistance on wet surfaces per ANSI A326.3
- Interior wet floors need wet DCOF of at least 0.42; wet-plus needs 0.50; exterior wet and oil/grease zones need 0.55
- DCOF differs from SCOF (static friction) and R-ratings (Europe/Australia's ramp test)
- No tile is slip-proof — DCOF is one factor among texture, maintenance, and drainage
- Match DCOF and PEI to the real use case with an experienced tile specifier
What DCOF Represents in Tile Performance
DCOF stands for Dynamic Coefficient of Friction. Under ANSI A326.3, it is the ratio of the force needed to keep one surface sliding over another, divided by the normal force pressing them together. That figure is a measured, documented value—not a marketing claim a manufacturer assigns on a whim.
This matters because DCOF is a specification parameter, not a slip-prevention guarantee. It helps match a tile product to expected foot traffic and moisture conditions during the design phase.
DCOF fits into a larger set of decisions:
- Material type (porcelain, ceramic, natural stone)
- Surface finish (matte, polished, textured)
- PEI rating (wear durability, covered below)
- DCOF value (traction under wet conditions)
Manufacturer technical sheets often report DCOF averaged over the last two years of production, and results should come from accredited third-party labs. If a tile spec sheet doesn't include a documented wet DCOF, that's a red flag for any wet-area application.
Factors That Influence Real-World Slip Resistance
A lab-tested DCOF number describes a controlled scenario. ANSI A326.3 itself states the test makes no claim of correlation to actual footwear or human ambulation. Real floors behave differently.
Surface and Contaminants
- Matte and textured finishes generally outperform polished surfaces in wet conditions
- Soap film, grease, oil, and standing water cut effective traction even on high-DCOF tile
- Sealers often lower wet traction on porcelain and are usually skipped; low absorption also means they bond poorly
Installation and Wear
- Poor slope and drainage leave standing water that defeats even a well-rated tile
- More grout joints can add marginal traction; large-format layouts reduce joint count and can shift slip behavior
- Foot traffic and harsh cleaners wear down texture, lowering effective DCOF years after install
Who uses the floor matters too. A commercial kitchen with rubber-soled staff shoes behaves differently than a spa with bare feet. No single DCOF number covers all of these variables, which is why ANSI frames 0.42 as a threshold, not a promise.

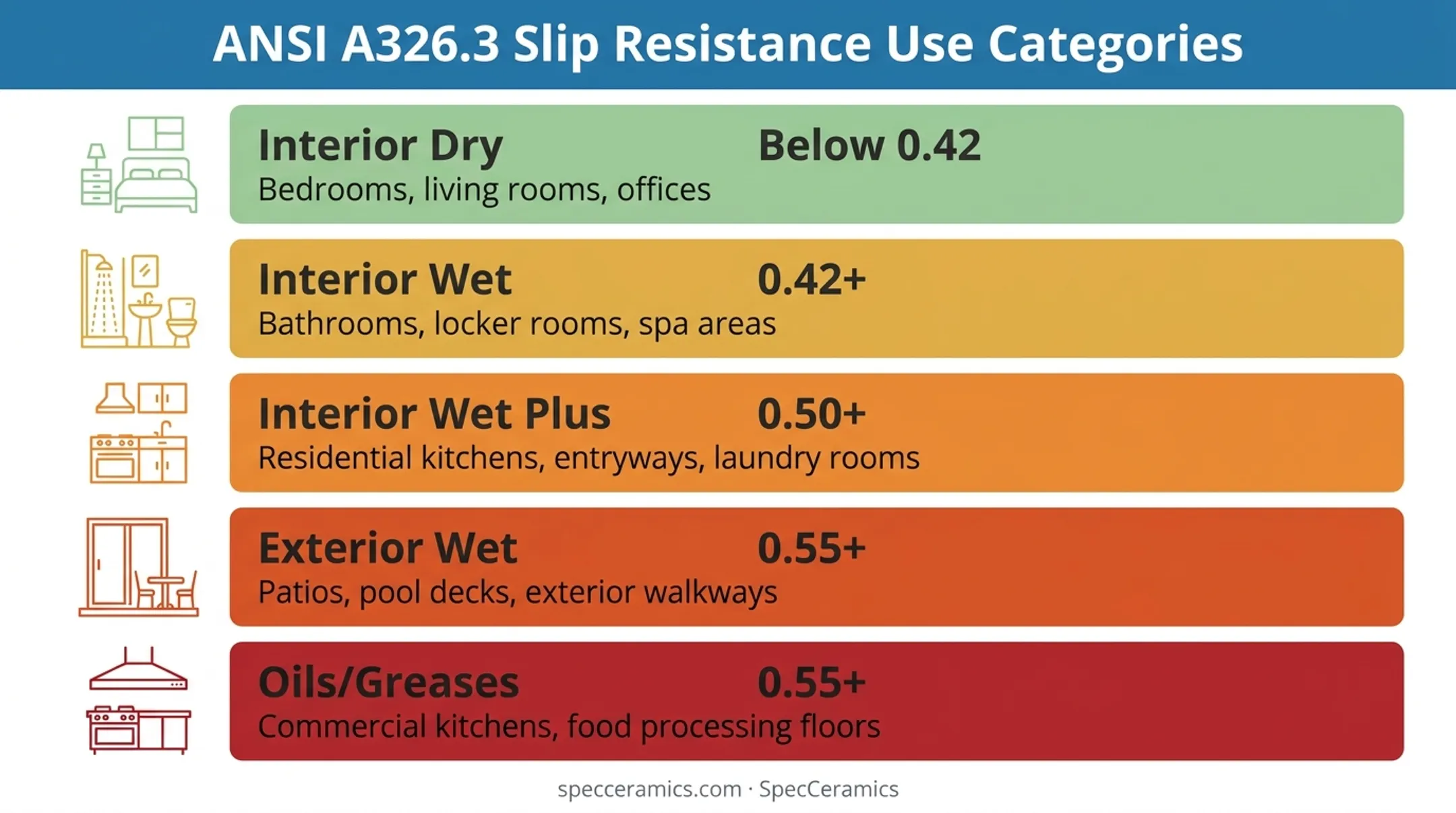

DCOF Rating Ranges and What They Mean
ANSI A326.3 sorts tile into five use categories, each with its own minimum wet DCOF benchmark.
| Use Category | Minimum Wet DCOF | Typical Applications |
|---|---|---|
| Interior, Dry | Below 0.42 acceptable | Bedrooms, offices, retail (non-food) |
| Interior, Wet | ≥0.42 | Bathrooms, residential kitchens, entryways |
| Interior, Wet Plus | ≥0.50 (generally accepted) | Commercial kitchens, locker rooms |
| Exterior, Wet | ≥0.55 (generally accepted) | Patios, exterior walkways |
| Oils/Greases | ≥0.55 (generally accepted) | Commercial kitchen floors, food service |
Why Specifiers Often Exceed the Minimum
The 0.42 threshold is a floor, not a target. In high-liability environments (hospitals, schools, senior living facilities, public pool decks), many specifiers deliberately choose tile rated well above the minimum for that category.
Specifying at the minimum carries real consequences:
- Increased fall risk in high-traffic or high-moisture zones
- Potential building code non-compliance
- Warranty and liability exposure if an incident occurs
For projects serving elderly residents, children, or high foot-traffic public spaces, use the ANSI minimums as a baseline and specify higher where occupancy risk demands it.

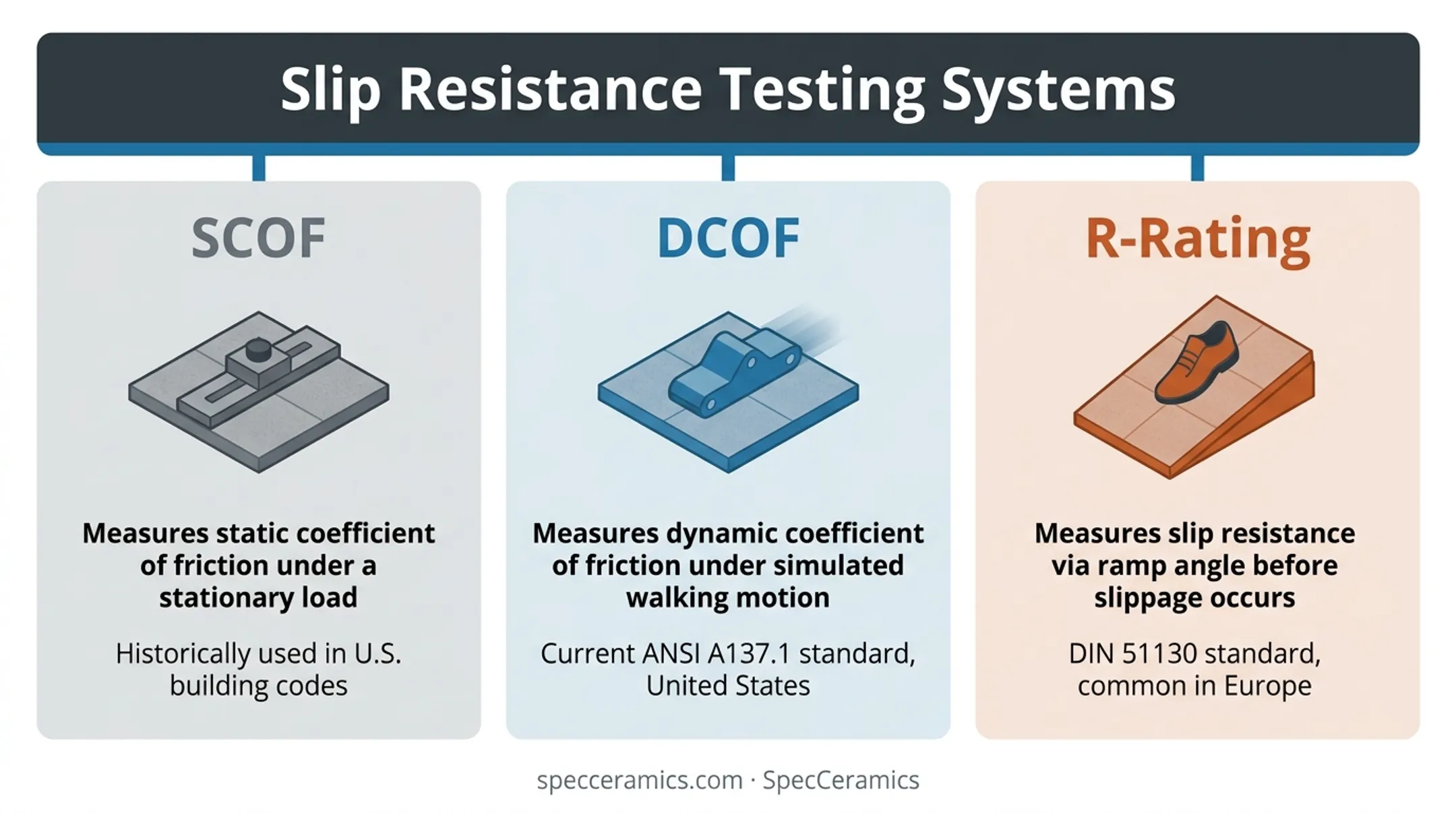

DCOF vs. SCOF vs. R-Rating: Comparing Slip Resistance Systems
These three systems get confused constantly, and mixing them up on a spec sheet can cause real problems.
| System | What it measures | Where it's used |
|---|---|---|
| SCOF | Force needed to start sliding | Older U.S. method (largely replaced) |
| DCOF | Force needed to keep sliding | U.S. ceramic tile standard (ANSI A326.3) |
| R-Rating (R9–R13) | Ramp angle at which slipping begins | Europe and Australia |
SCOF (Static Coefficient of Friction) and DCOF (Dynamic Coefficient of Friction) differ by one critical word: start versus keep moving. DCOF became the ceramic tile industry's standard test method in 2012 under ANSI A137.1, later refined into the dedicated ANSI A326.3 standard.
The R-Value system is a ramp test: a person in standard shoes walks an inclined, oil-coated surface, and the angle at slip sets the rating. Higher numbers mean steeper angles and greater resistance.
Don't try to convert between DCOF and R-ratings. They use different equipment, lubricants, and test protocols. A tile rated R11 in a European spec sheet cannot be reliably translated into a DCOF number, and vice versa. If a project requires both systems (common on international product lines), request documentation for each standard separately.
Related Consideration: PEI Rating
PEI (Porcelain Enamel Institute) rating measures surface durability and wear resistance, not slip resistance. It's an entirely separate metric. A tile can have excellent DCOF and poor PEI, or the reverse — durability and traction are independent variables that both need checking before specification.
How DCOF Is Measured, Specified, and Validated

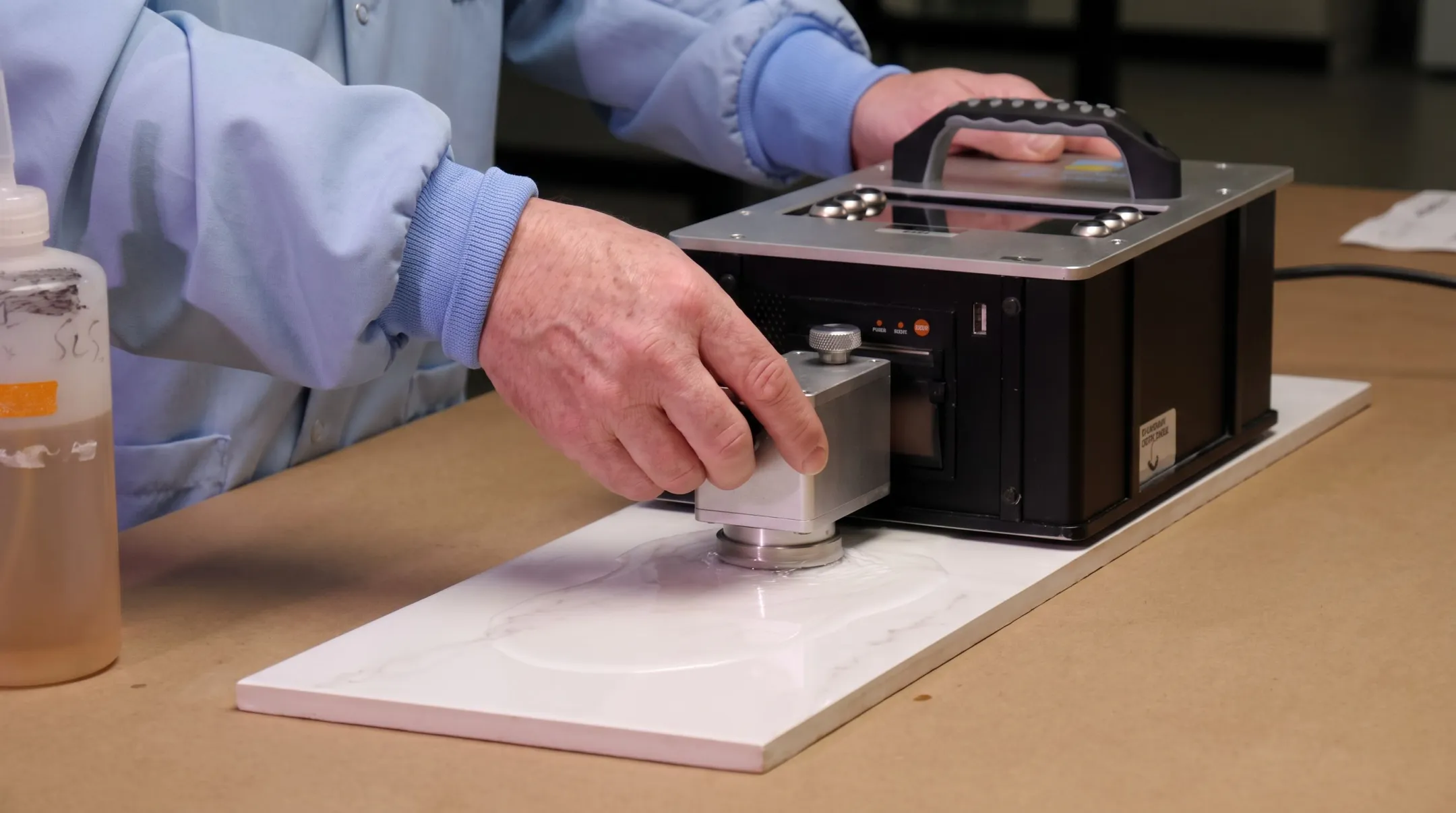

DCOF testing under ANSI A326.3 uses a tribometer, typically a BOT-3000-type device, to measure the force required to drag a standardized rubber slider across a wet tile surface. The wetting solution and test sequence are tightly controlled to produce repeatable results.
You can usually pull DCOF data from:
- Manufacturer technical sheets (fastest, but often self-reported)
- Spec documents and submittals (standard in commercial bid packages)
- Third-party lab reports (best option for independent verification)
A manufacturer's published DCOF is not the same as an independently verified lab result. For commercial projects with liability exposure, request the lab documentation directly. Averages reported "over the last two years of production" can also shift between lots.
SpecCeramics' architectural sales representatives help cross-reference DCOF and PEI data against manufacturer documentation across ceramic, porcelain, and stone collections, so the tile specified on paper matches what arrives on site.

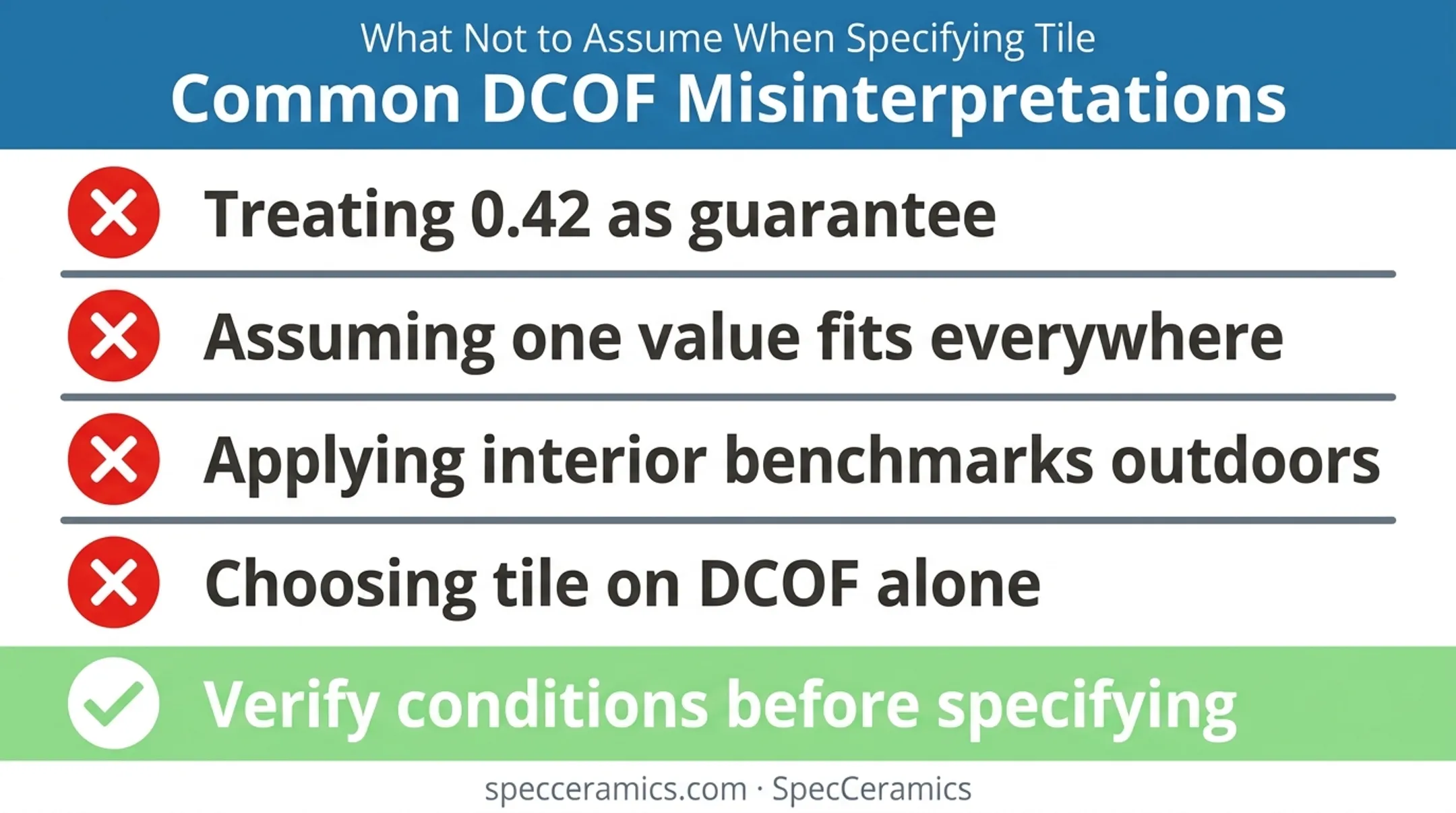

Common Misinterpretations of DCOF Ratings
A few recurring mistakes show up across projects, and they're worth flagging directly:
- Treating 0.42 as an absolute safety guarantee. It's a minimum baseline for interior wet floors, not a promise against falls.
- Assuming one DCOF value applies everywhere. Contaminants, slope, and maintenance practices all shift real-world performance.
- Applying interior wet benchmarks to exterior or pool-adjacent tile. Exterior and oil/grease zones call for higher thresholds (≥0.55) because of added risk factors like rain and algae.
- Choosing tile on DCOF alone. Texture, cleanability, and long-term wear resistance matter just as much for sustained slip performance.
The safest approach: use DCOF as one input among several, and verify manufacturer data against the specific conditions of your project.
Frequently Asked Questions
What does DCOF mean for tiles?
DCOF is the ANSI-standardized test measuring a tile's dynamic slip resistance while a surface is already in motion. It's used to guide selection for wet and dry areas under ANSI A326.3.
What does DCOF 0.42 mean?
It's the ANSI-recommended minimum wet DCOF threshold for level interior tile floors expected to be walked on when wet, such as bathrooms and kitchens.
What is a good DCOF rating?
It depends on the application. A rating of 0.42+ suits standard interior wet areas, while higher values (0.50 to 0.55+) are advisable for wet-plus, exterior, or oil-exposed spaces.
What is the recommended DCOF for exterior tile?
Exterior and pool-adjacent areas generally call for a minimum wet DCOF around 0.55, higher than the interior wet baseline. Always verify the manufacturer's exterior-specific test data.
What is the difference between DCOF and SCOF?
SCOF measures the force needed to start sliding; DCOF measures the force needed to keep sliding. DCOF is the current industry standard under ANSI A326.3.
Which tile is most slip-resistant?
Textured, matte-finish porcelain tiles with higher documented DCOF or R-ratings typically offer the most traction. Always check the specific product's technical data rather than assuming by material type.
