Is it "tile" or a "slab"? Is 6mm strong enough for a floor? What's the difference between a panel and a countertop-grade slab? These questions come up in nearly every showroom conversation.
This guide breaks down what gauged porcelain tile panels actually are, where they perform best, and what to check before you specify or purchase.
Key Takeaways
- Gauged porcelain panels run 3–6.5 mm thick, calibrated for uniform thickness under ANSI A137.3
- At roughly 3 lbs per square foot, panels cut dead load versus natural stone slabs
- One system covers floors, walls, facades, countertops, and furniture fronts
- Budget trained crews, vacuum lifting gear, and manufacturer-approved setting materials
- SpecCeramics design libraries help match panel thickness and finish to your project
What Is Gauged Porcelain Tile?
Gauged porcelain tile refers to porcelain manufactured to a precise, calibrated thickness, typically 3mm to 6.5mm. The name comes from the calibration process itself: the panel is ground to an exact, consistent gauge across its entire surface.
The industry draws a line between "tile" and "panels/slabs" based on surface area, per ANSI A137.3, the product standard governing gauged porcelain. Below one square meter, it's tile. At or above that threshold, it's classified as a panel or slab.
How It's Made
Manufacturing starts with a slurry of clay, sand, and feldspar, roughly 42% clay, 35% feldspar, and 13% sand in typical formulations. This slurry runs at about 25-30% water content before spray-drying into granules. Those granules get pressed into large sheets, fired between 1000°C and 1300°C, then cut and rectified to precise dimensions.
Typical dimensions:
- 160×320 cm (actual: 1596×3197mm)
- 120×280 cm
- 120×260 cm
Some product lines, like MILEstone's JEM collection, offer panels up to 48×110 inches at 6mm thick.
Panels vs. Slabs vs. Traditional Tile
Don't confuse gauged porcelain panels with thicker porcelain slabs meant for countertops. Countertop-grade material typically runs 12mm or thicker. Some gauged panels include fiberglass backing for reinforcement, such as Kerlite's 6plus product at 6.5mm.
Traditional ceramic and porcelain tile, by comparison, is usually 8-10mm thick and manufactured in much smaller formats. The thinness and scale of gauged panels are what set them apart.
Installation is governed by its own standard: ANSI A108.19 for interior thin-bed installation of gauged porcelain tiles and panels. Exterior work falls under A108.20.
Key Benefits of Gauged Porcelain Tile Panels
Aesthetic Versatility at Scale
Gauged panels replicate marble, natural stone, concrete, and wood grain across surfaces several feet wide. Fewer grout lines mean a cleaner, more continuous look.
Collections like Maestro—one of the first American-made large-format porcelain slab lines—offer finishes from polished to matte to smooth honed. Colorways include Carrara Zebrino and Taj Mahal.
Lightweight Construction
One of the biggest practical advantages: weight. A 48×110-inch panel at 6mm thickness weighs around 108.5 lbs total, which works out to approximately 3 lbs per square foot. That's a meaningful difference for structural loading, especially on upper floors or wall applications where dead load matters.
Durability and Performance
Gauged porcelain panels meet demanding performance standards:
- Water absorption of ≤0.5% under ASTM C373
- Breaking strength of ≥200 lbf under ASTM C1505 (exceeding the 175 lbf standard)
- Freeze-thaw resistant under ASTM C1026
- Rated for both residential and commercial foot traffic
Low Maintenance, High Hygiene
Because the surface is dense and non-porous, gauged porcelain resists bacteria and allergens without sealing. Wipe it down, and you're done. No annual resealing routine like you'd expect with natural stone.
Sustainability Considerations
Lighter panels mean lighter shipping loads. Manufacturers like MILEstone report sourcing over 95% of raw materials within 500 miles of their production facility, along with closed-loop water recycling. Some renovations also allow tile-over-tile installation, which cuts demolition waste.
Best Applications for Gauged Porcelain Tile Panels
Interior surfaces:
- Floors and feature walls
- Kitchen backsplashes and countertops
- Bathroom and shower walls with minimal seams
Furniture and fixtures:
- Kitchen islands and tables
- Cabinetry fronts and drawer faces
- Reception desks
Some manufacturers offer 1mm-thick material for cabinet doors and complete furniture pieces, applied to both horizontal and vertical surfaces.
The same thin-panel format also performs outdoors and in demanding commercial spaces.
Exterior and commercial:
- Building facades
- Pool decks
- High-traffic commercial lobbies
Freeze-thaw resistance under ASTM C1026 makes exterior applications viable in colder climates—confirm the specific product’s test results first.
Not every panel in a catalog is rated for every exterior condition. Check the technical sheet before specifying a facade or pool surround.
Gauged Panels vs. Traditional Tile and Natural Stone
| Factor | Gauged Porcelain Panels | Traditional Tile | Natural Stone |
|---|---|---|---|
| Grout lines | Minimal, large coverage | Frequent | Minimal to moderate |
| Sealing required | No | No | Often, yes |
| Weight | ~3 lbs/sq ft | Heavier | Significantly heavier |
| Handling | Specialized equipment needed | Standard | Heavy equipment needed |
| Stain resistance | High | High | Varies by stone type |
Gauged panels sidestep a major pain point with marble and limestone: sealing. Porous natural stone needs regular sealing to resist staining. Porcelain doesn't have that porosity problem in the first place.

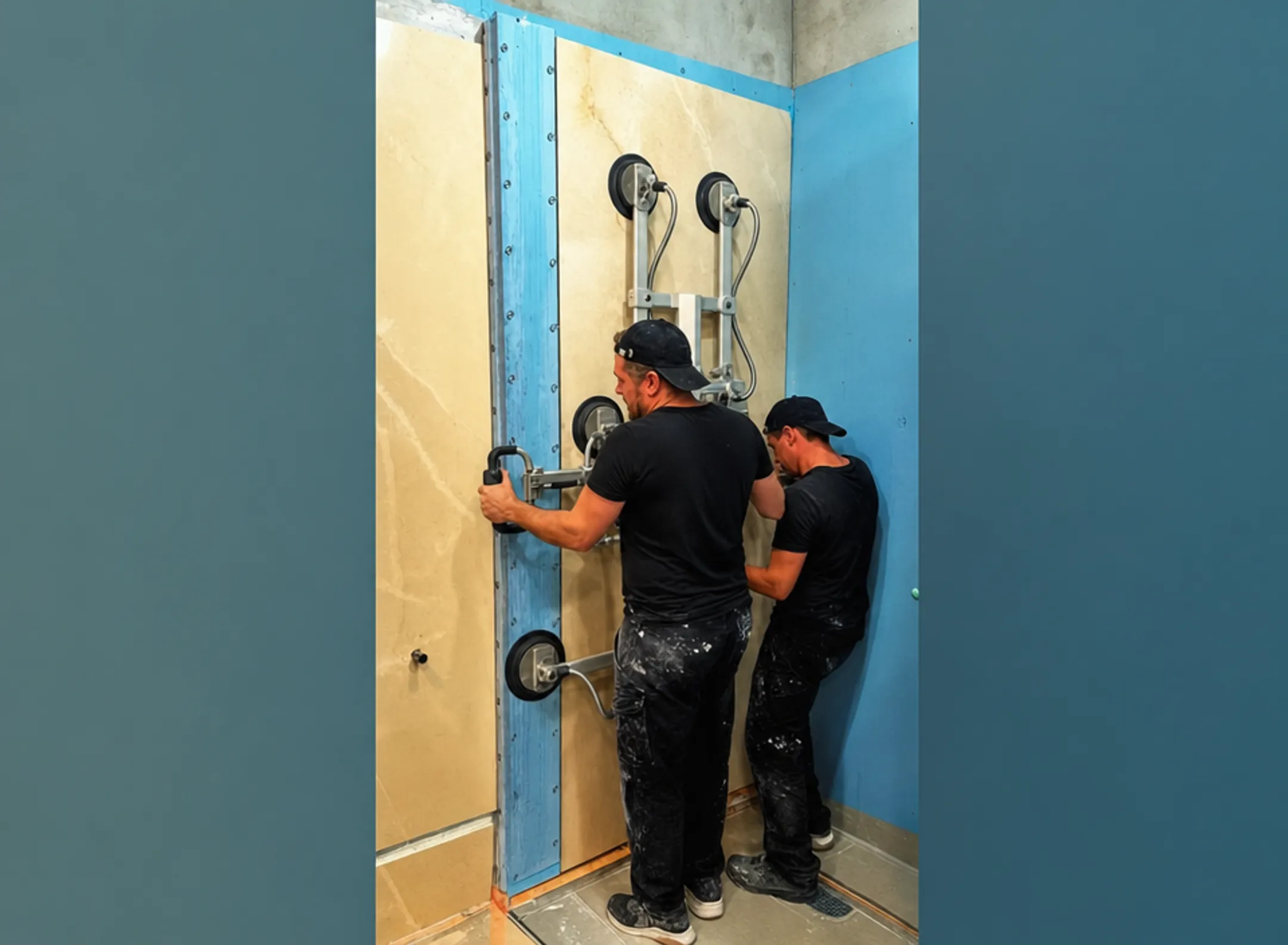

The trade-off is handling. A 5×10-foot sheet that's only 6mm thick is fragile until it's properly supported. Installation isn't a DIY job. It requires vacuum lifting equipment, trained crews, and careful substrate prep.
Specifying and Installing Gauged Porcelain Tile Panels
Getting a beautiful panel onto a wall or floor without cracking it takes real expertise. A few requirements matter more than most expect:
- Two-person handling — Slabs over 40 inches in either dimension typically require two installers plus vacuum suction cups or lifting trolleys.
- Correct adhesive — C2 cement adhesive is standard; anything larger than 12×12 inches often needs double-layer application per the adhesive manufacturer's instructions.
- Trained installers — Installation should follow ANSI A108.19 (interior) or A108.20 (exterior), not general tile-setting practices.
- Manufacturer-approved materials — Using the wrong mortar or setting material voids warranties and risks failure.
Because thickness, finish, and application requirements vary so much between product lines, working with an experienced supplier matters. SpecCeramics has specialized in commercial construction and architectural surface materials since 1986.
Design-library resources and showroom consultations are available across California, Arizona, Nevada, Utah, Colorado, and Hawaii. For customers outside those states, the corporate office offers virtual project support.
Whether you're specifying a facade panel for a commercial build or selecting a backsplash for a kitchen remodel, complimentary quotes help match the right gauged porcelain product from SpecCeramics' manufacturer network to your application.
Frequently Asked Questions
What is a gauged porcelain tile?
Gauged porcelain tile is porcelain manufactured to a precise, calibrated thickness, typically 3-6.5mm. It's governed by ANSI A137.3, which also distinguishes "tile" from larger "panels/slabs" based on surface area.
What is the average lifespan of porcelain tiles?
Porcelain tile often lasts decades with proper installation and maintenance, outlasting most other flooring options. Ask your supplier for product-specific warranty and durability data, since lifespan varies by product and use.
What is the best grade of porcelain tile?
Grade depends on application: floors and high-traffic commercial areas need higher wear-resistance ratings than wall tile. Check the manufacturer's ANSI A137.1 surface-wear classification and confirm it matches your intended use before specifying.
Does porcelain come in slabs?
Yes. Porcelain slabs, typically 12mm or thicker, are made for countertops and heavier-duty applications. These are distinct from thinner gauged panels, which run 3-6.5mm and are designed for floors, walls, and lightweight cladding.
Are porcelain slabs worth it?
For most projects, yes. The upfront cost is offset by low maintenance, no sealing requirements, and strong resistance to scratches and stains. They compete well with natural stone in kitchens and other high-traffic surfaces.
What are the different types of porcelain tiles?
Common varieties include glazed, full-body/unglazed, textured, wood-look, stone-look, and marble-look porcelain. Choose finish options like polished, matte, or honed based on the collection and where the tile will be installed.
