Porcelain Pavers on Pedestal Systems Rooftop decks, balconies, and terraces across California and the western US increasingly use porcelain pavers set on pedestal systems instead of traditional mortar beds. Architects and contractors like the approach because it solves problems that plague elevated outdoor spaces: uneven substrates, poor drainage, and sloped surfaces that don't match a finished floor plane.

Pedestal systems address these challenges directly. They lift porcelain pavers above the substrate, creating a level surface regardless of what's underneath, while allowing water to drain freely.

This guide covers how pedestals work, why porcelain pairs so well with them, installation basics, cost factors, and how to choose the right porcelain for your project.

Key Takeaways

  • Pedestal systems create level, well-drained surfaces over sloped or uneven substrates without structural changes
  • Porcelain pavers paired with pedestals need no mortar or grout, simplifying installation
    • Match pedestal height and type to the substrate and application: rooftop, balcony, or on-grade
    • Specify porcelain thickness, finish, and format with a tile supplier experienced in pedestal systems

What Are Pedestal Systems and Why Are They Used With Porcelain Pavers?

Pedestal systems are adjustable or fixed supports placed beneath porcelain pavers to elevate them above a roof deck, concrete slab, or grade. Instead of mortaring tile directly to the substrate, installers set pavers on top of these supports at their corners and edges.

This approach solves several problems at once:

  • Load distribution: Pedestals spread foot traffic evenly, protecting waterproofing membranes from puncture or wear
  • UV protection: The paver surface shields the membrane below from sun exposure that degrades roofing materials over time
  • Drainage: The gap beneath the pavers lets water flow freely to drains instead of pooling
  • Utility access: Wiring, plumbing, or irrigation lines can run beneath the pavers, hidden but reachable
  • Leveling: Pedestals compensate for sloped or irregular surfaces, creating a flat walking plane without regrading or repouring concrete

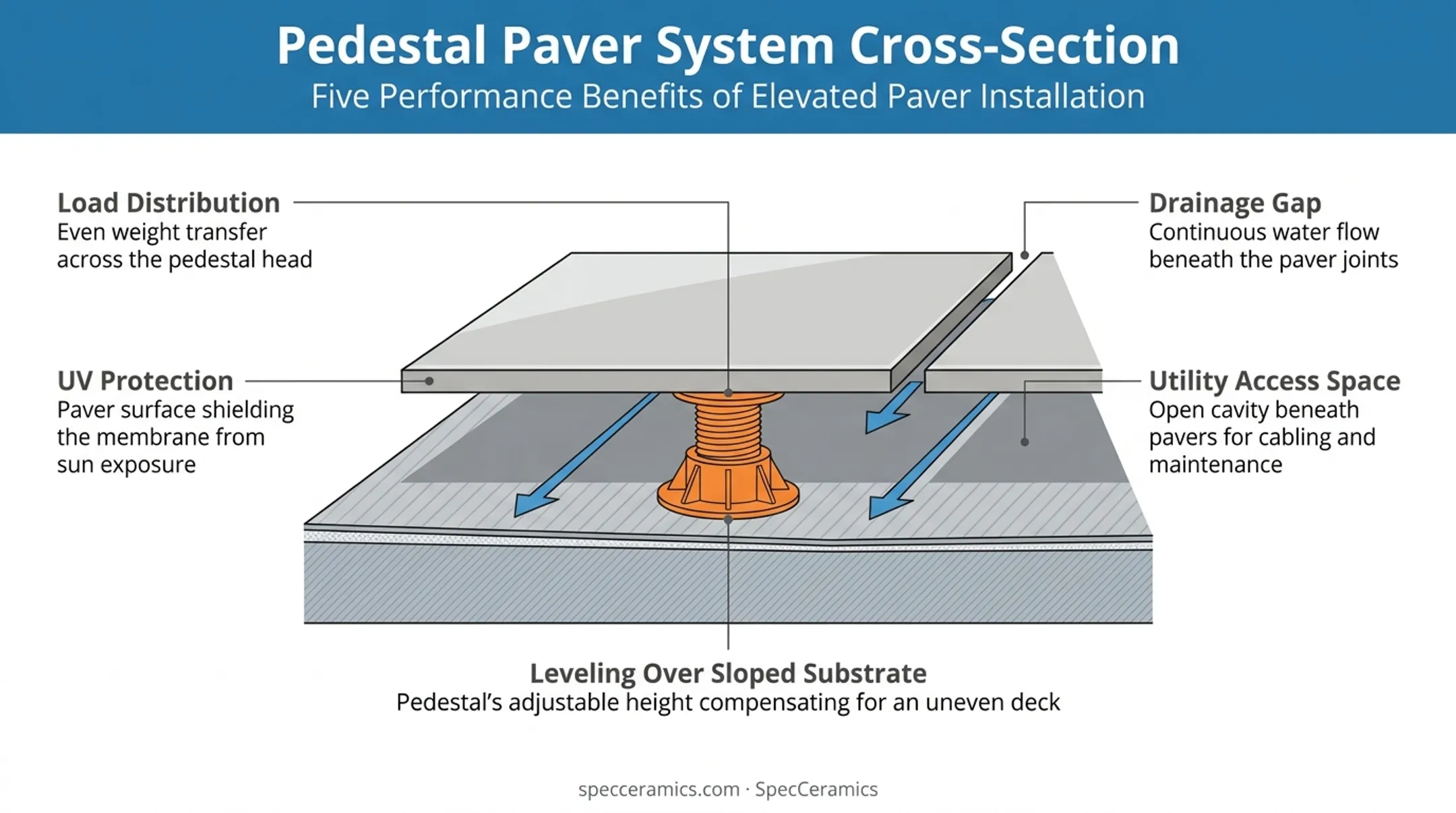

Pedestal system cross-section showing drainage load distribution and utility access

Types of Pedestal Systems

Manufacturers offer a few main categories, each suited to different substrate conditions:

  1. Fixed-height pedestals: Used on substrates that are already level and consistent
  2. Adjustable-height pedestals: Built for sloped or irregular surfaces. Buzon's PB series, for example, spans a documented range from roughly 15/32 inch up to 37 5/8 inches across its various models
  3. Self-leveling heads and accessories: Slope correctors, spacer tabs, and shims fine-tune the final surface. Buzon's U-PH5 slope corrector compensates for grades from 0% to 5% in half-percent increments, adding about a half-inch of height in the process

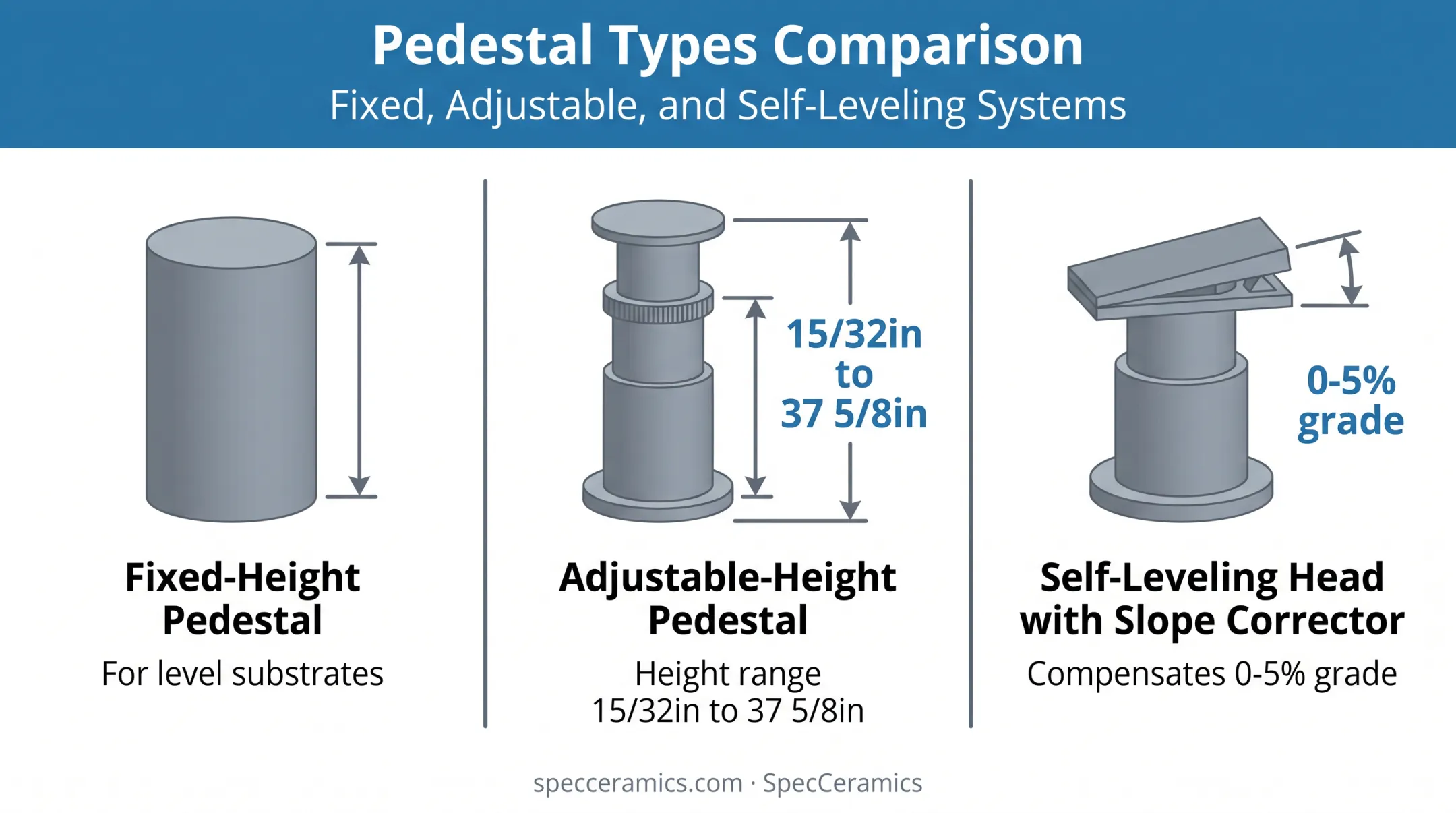

Comparison of fixed adjustable and self-leveling pedestal system types

Matching the pedestal type to the substrate is what determines whether the finished surface sits level.

Why Porcelain Pavers Are Ideal for Pedestal Installations

Porcelain's physical properties make it a natural fit for elevated, exposed applications. Dense and dimensionally stable, it holds up where lesser materials fail.

Water absorption is the key differentiator. The Tile Council of North America defines porcelain tile as having water absorption of 0.5% or less, tested under ASTM C373. That density is a major reason porcelain resists cracking, staining, and freeze-thaw damage better than more porous materials.

Florida Tile's 2cm porcelain pavers, for instance, meet that same ≤0.5% absorption benchmark alongside an ANSI A326.3 Exterior, Wet classification.

That low absorption translates into real performance:

  • Freeze-thaw resistance — Less absorbed water means less internal expansion during freeze cycles (TCNA still advises confirming frost resistance by product)
  • UV stability — Porcelain doesn't fade the way some composite pavers do
  • Stain resistance — Products like Frontier20 pavers are rated unaffected by stains under ASTM C1378

Large-format porcelain slabs on pedestals also deliver a clean, continuous look that's become popular on both commercial rooftops and residential terraces.

Consistent thickness matters here too. Most pedestal-rated porcelain runs 2cm (20mm), which ensures pavers seat evenly across pedestal heads without rocking or lippage. Florida Tile's 2cm paver line, available in 24x24 and 24x36-inch formats, is built specifically to that thickness standard.

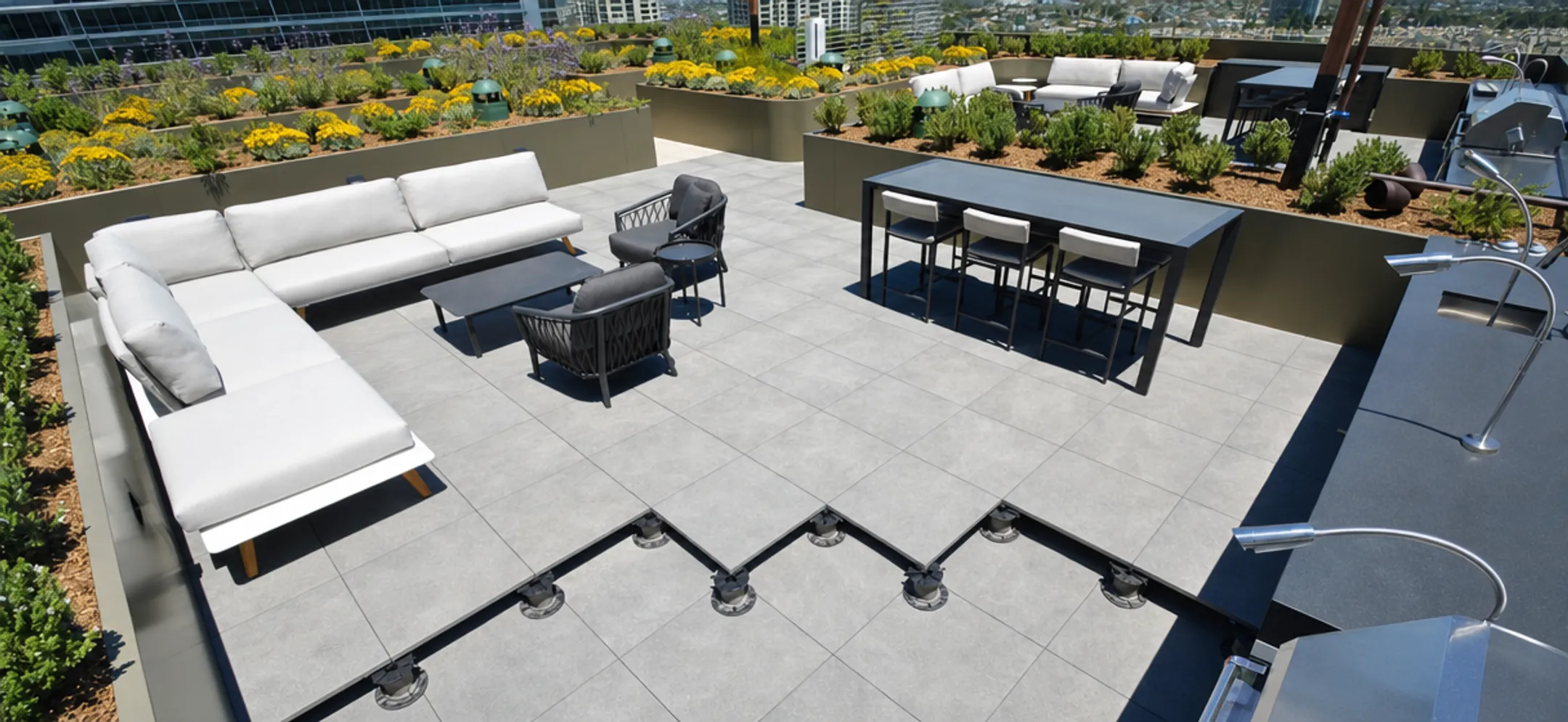

Large-format porcelain pavers installed on rooftop terrace pedestal system

What Is the Best Base for Porcelain Pavers on a Pedestal System?

The ideal base is a stable, properly sloped substrate: a roof membrane, concrete deck, or compacted grade that channels water toward drainage points. Ragno's installation guidance recommends a finished-surface gradient of at least 1.5% for unprotected outdoor paving to prevent standing water.

Installation follows a consistent sequence:

  1. Prepare and clean the substrate thoroughly.
  2. Lay out pedestal spacing with chalk lines, matching the paver format.
  3. Position pedestals at paver corners and intersections.
  4. Box in the perimeter so pavers can't shift laterally, and maintain proper edge gaps.

Support density varies by paver format:

  • 60×60 cm: about 6 supports per slab
  • 60×120 cm: about 3.4 supports per m² (~0.3 per sq ft)
  • 45×90 cm: about 6 supports per m² (~0.6 per sq ft)

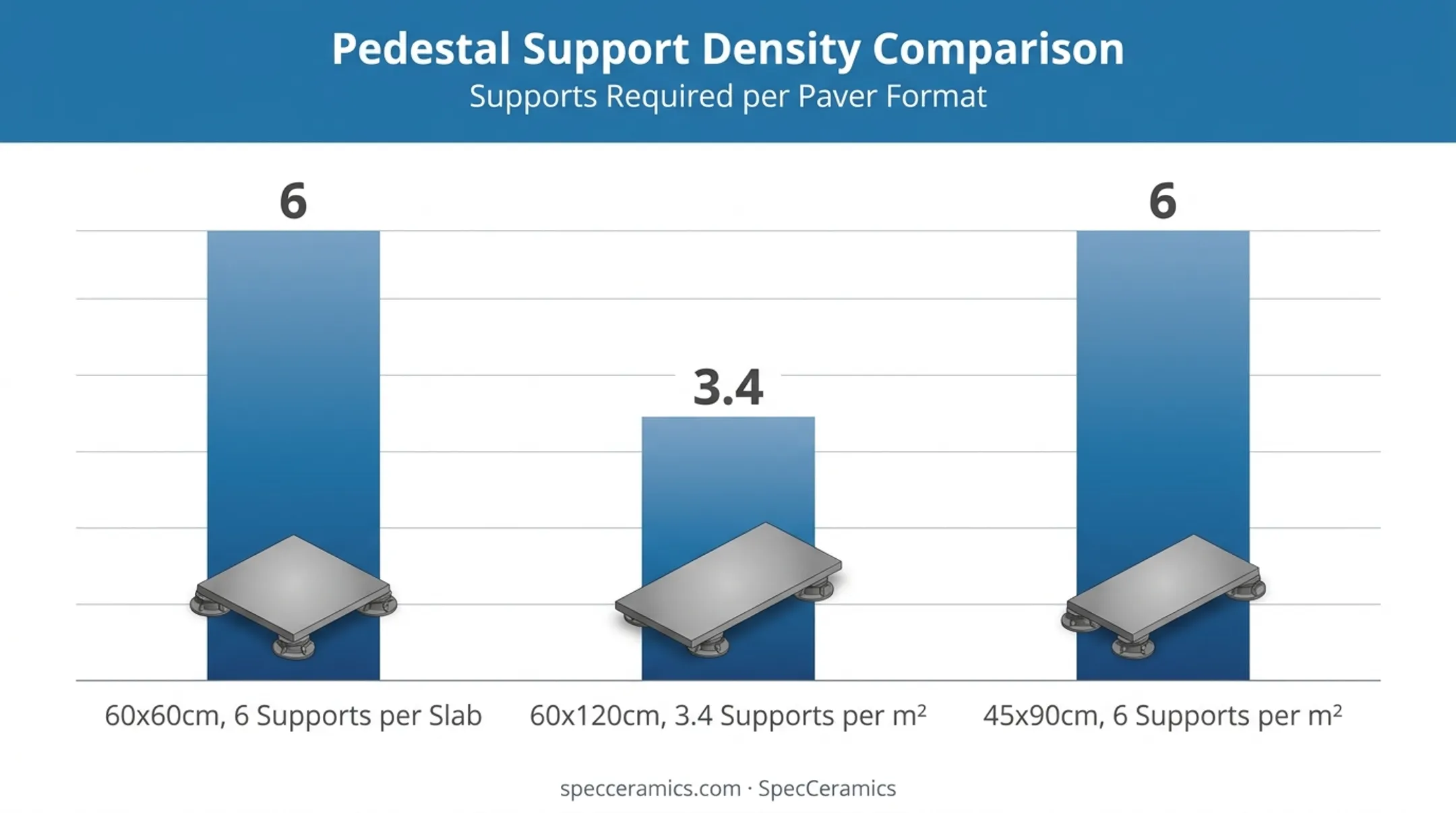

Pedestal support density chart by porcelain paver format size

Load and code considerations matter more on rooftops. Dry flooring systems installed above ground level must comply with local requirements for wind load, structural load-bearing, and seismic events. For raised-floor heights above about ¾ in (20 mm)—and for structural builds in the roughly ¾–1⅜ in (20–30 mm) range—manufacturer guidance typically calls for a project engineer to verify the specs against site conditions.

On larger commercial or architectural jobs, confirm wind, structural, and seismic requirements with your engineer and supplier before materials are ordered, so pedestal layout and paver format match the approved assembly.

Cost Considerations for Pedestal Paver Systems

Pricing for pedestal paver systems depends on several factors:

  • Pedestal type: Fixed-height units generally cost less than adjustable ones
  • Height requirements: Taller adjustable pedestals and slope-correction accessories add cost
  • Porcelain selection: Format, finish, and manufacturer all affect per-square-foot pricing

Pedestal systems and porcelain pavers often carry a higher upfront material cost than some alternatives. But they can reduce labor costs by eliminating mortar, grout, and extensive substrate prep. There's no curing time to wait out, and no messy demo if a paver needs replacing later. It simply lifts out.

Because pricing depends heavily on square footage, height variance, and site-specific conditions, it's worth requesting a project-specific quote rather than relying on a generic estimate. SpecCeramics' quote request process, for example, asks for project location and whether the job is commercial or residential to scope pricing accurately.

Choosing the Right Porcelain Pavers for Your Pedestal Project

Not all porcelain is created equal for pedestal use. Three specs matter most:

  • Thickness — 2cm (20mm) is standard for pedestal-supported outdoor applications
  • Slip resistance — ANSI A326.3 DCOF above 0.42 (Class 3) for wet outdoor conditions
  • Finish — Textured or R11-rated surfaces perform better in wet conditions than polished finishes

SpecCeramics gives architects, contractors, and homeowners access to ceramic, porcelain, and stone surface materials from manufacturers based in Italy, Spain, and the United States. The company's showroom and design-library resources help narrow down formats, finishes, and technical specs for pedestal applications specifically.

Given how much thickness, format, and slip rating affect performance on a pedestal system, talk with an architectural or residential sales representative early in the design process. Getting material selection right before drawings are finalized avoids costly substitutions later.

Frequently Asked Questions

How much does a pedestal paver system cost?

Costs depend on pedestal type, height adjustment range, and the porcelain paver you select. Because pricing varies by project conditions, request a project-specific quote from SpecCeramics rather than relying on a general estimate.

Is porcelain more expensive than pavers?

Porcelain often costs more upfront than standard concrete pavers. However, its durability, low maintenance, and resistance to staining and fading typically deliver better long-term value.

What are pedestals for porcelain pavers?

Pedestals are adjustable or fixed supports placed beneath porcelain pavers to elevate and level them above a substrate like a roof deck or concrete slab. They allow drainage and protect waterproofing membranes underneath.

Are paving pedestals any good?

Yes, when properly specified and installed. They excel at leveling uneven surfaces, promoting drainage, and protecting the substrate from foot traffic and UV exposure.

What is the best base to lay porcelain tiles on?

A stable substrate with a slight slope, generally around 1.5% or more, toward drainage points works best. The base should also meet local code requirements for load and structural support, particularly on rooftops.
