Ceramic tile forming methods matter more than most spec sheets let on. International standards like EN 14411 and ISO 13006 classify tiles by exactly this: shaping method and water absorption. Extrusion (Group A) and dry pressing (Group B) produce genuinely different products with different strengths, limitations, and ideal use cases.
This guide breaks down how extruded tile is made, how it stacks up against pressed alternatives, where it performs best, and how to specify it correctly for your next project.
Key Takeaways
- Moist clay forced through a die forms dense extruded tiles with uniform thickness for demanding applications.
- They deliver strong compressive strength, natural slip resistance, and reliable weather durability.
- Color and finish options run narrower than pressed tile—plan aesthetics early in specification.
- Typical uses include exterior paving, dimensional wall cladding, sunshades, and heavy-traffic industrial flooring.
- A knowledgeable tile supplier helps match the right specification to your project's structural and design needs.
What Does Extruded Tile Mean?
Extrusion starts with moist clay pushed through a shaped die, forming a continuous profile that's cut to length, dried, and fired. Manufacturers like Kosei run this process in dedicated industrial facilities, producing full-body colored slabs with no glaze required — the color runs straight through the material.
This differs from dry-pressing, where clay powder is compacted in a mold under hydraulic pressure. Tile of Spain's process documentation confirms dry pressing relies on unidirectional pressing, typically via hydraulic presses sized to the part being formed.
What Extrusion Produces
The die-forming process leaves distinct fingerprints on the finished tile:
- Denser body from continuous compaction through the die
- Thicker profile than most pressed equivalents
- Natural surface texture from the die-skin finish
- Consistent cross-sectional shape along the tile's length
Metropolitan Ceramics' extruded quarry tile achieves a "tight die-skin surface" and low-absorption body. Its half-inch tile tests at 800 lbf or better on ASTM C648 breaking-strength testing — roughly triple the standard's 275 lbf minimum.
Both extruded and dry-pressed tiles get fired at 1000–1300°C after forming, which is what makes ceramic tile water- and chemical-resistant in the first place. The forming method determines density and shape; firing determines hardness.
Extruded vs. Handmade Tiles
Don't confuse extrusion with handmade production. Extrusion is machine-driven and consistent — every piece off the line matches the die profile. Handmade tiles, like Cotto Andaluz terracotta, are shaped manually, so no two pieces are identical in texture or dimension. Specify handmade when you want artisanal variation; choose extrusion when you need consistency at scale.

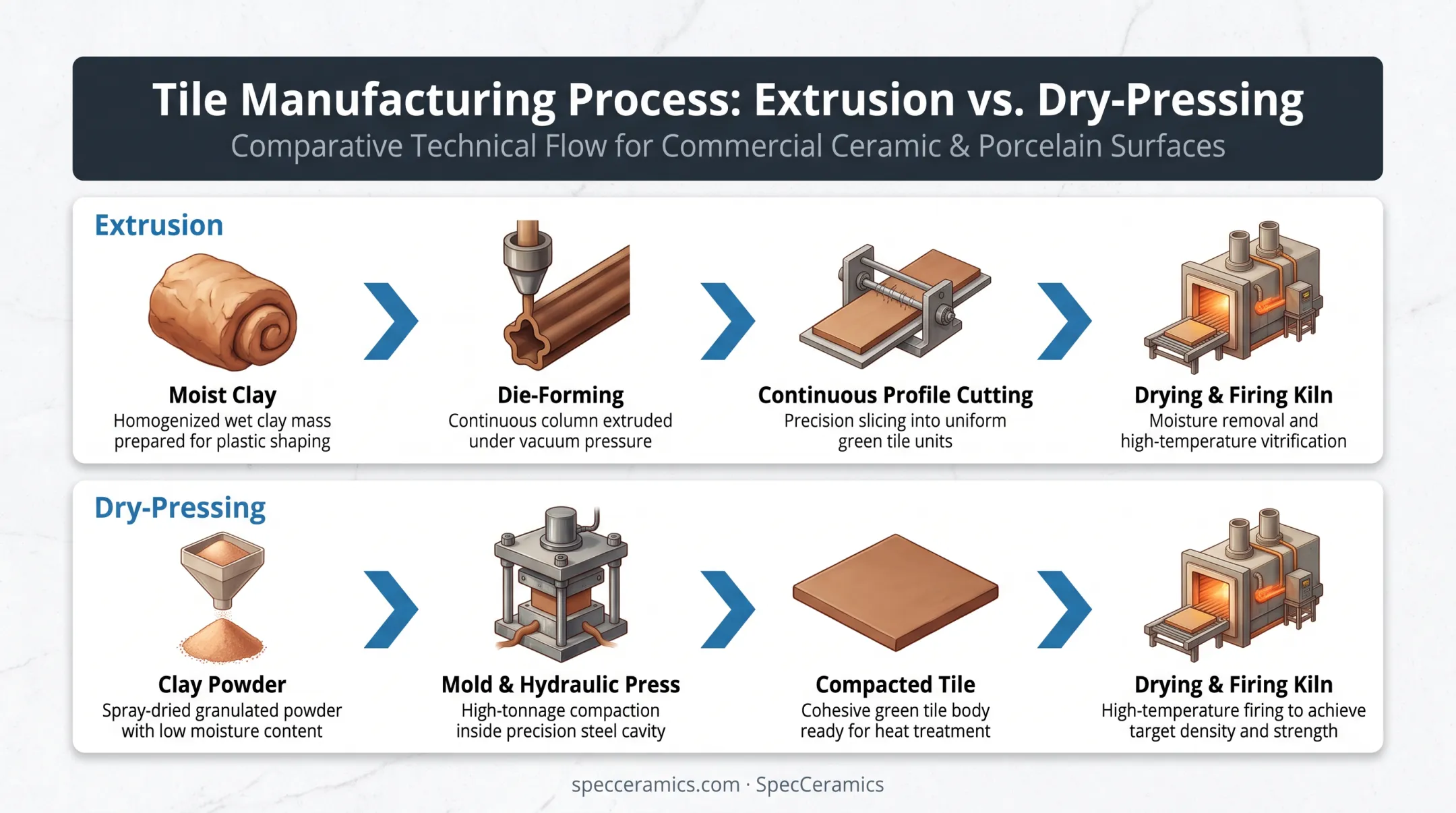

Extruded vs. Pressed (Dry-Pressed) Ceramic Tiles
The production method drives everything downstream: dimensional tolerance, absorption, design options, and where the tile performs best.
Forming process:
- Extrusion: moist clay forced through a die, continuous profile
- Dry pressing: powdered clay compacted in a mold under hydraulic force
Dry-pressed specs are the easier starting point because hydraulic pressing produces tight, well-documented tolerances. GEA's dry-pressed line, for example, holds 120.7 mm ±0.9 mm, with water absorption at or below 0.5% and a modulus of rupture of at least 35 N/mm².
Extruded tile is tested under different rules. ASTM C373 uses a vacuum method for pressed tile and a boil method for extruded tile, since each forming route responds differently in the lab. Neither method wins on strength or absorption by default. Performance is product-specific, so verify the manufacturer's test data for the SKU you are specifying.
Design Flexibility
Pressed tile wins on visual variety. Digital printing can replicate stone, wood, and concrete looks with high realism. Extruded tile leans into texture and dimension: ridges, fluted profiles, and shapes that pressing cannot produce.

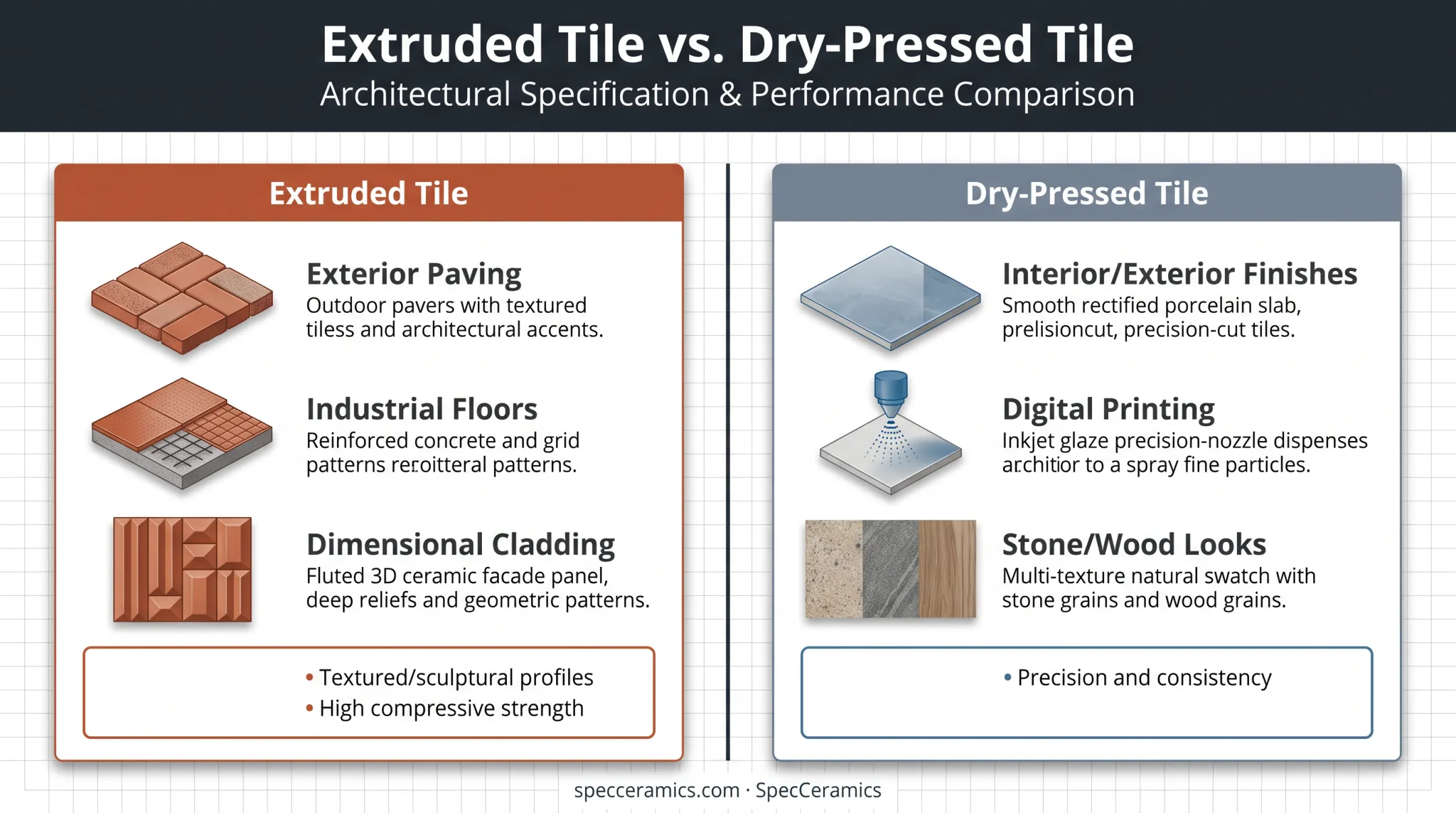

Where Each Fits
| Consideration | Extruded | Dry-Pressed |
|---|---|---|
| Best for | Exteriors, industrial floors, dimensional cladding | Versatile interior/exterior finishes |
| Design range | Textured, sculptural profiles | Digital printing, stone/wood looks |
| Typical strength | Dense, high compressive strength | Precise, consistent |
When a project could go either way, SpecCeramics' showroom and design-library resources let architects compare extruded and dry-pressed options side by side before locking the spec.
Advantages and Disadvantages of Extruded Ceramic Tiles
The Upside
- High compressive strength — extruded quarry tile routinely exceeds ASTM C648's 275 lbf minimum by a wide margin
- Natural slip resistance from the die-skin surface texture, without added coatings
- Weather and frost resistance for exterior service — tiles meeting ASTM C1026 and ASTM C373 generally hold up outdoors when installed correctly (per TCNA)
- Dimensional and sculptural profiles — ridges, fluting, and shapes pressing can't replicate
The Trade-offs
- Less dimensional precision than pressed tile — plan on wider grout joints (2 mm minimum is common) and tighter layout control
- Narrower color and finish palette — you won't get the digitally printed stone-look realism pressed tile offers
- Installation-sensitive durability — TCNA warns that even freeze-thaw-rated tile can fail if water reaches grout joints or setting-bed voids
Density alone doesn't guarantee longevity. Installation quality matters just as much.
Common Types and Applications of Extruded Tiles
Extruded ceramic tiles show up in several product forms, each matched to a different job on the wall, floor, or facade.
Fluted and dimensional wall tiles bring rippled, textured surfaces to accent walls, bar fronts, and hospitality interiors where visual depth matters more than a flat finish.

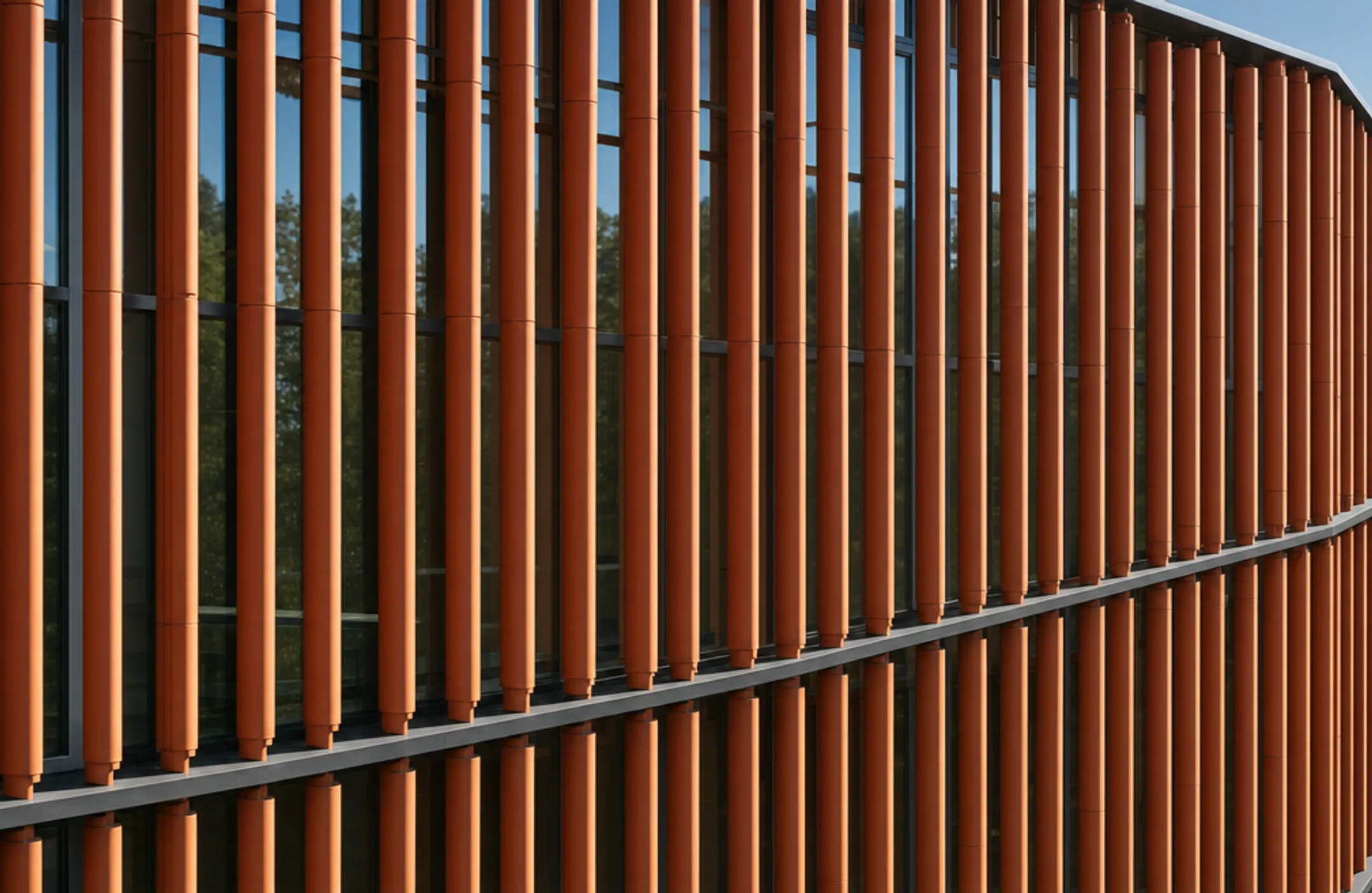

Ceramic sunbreaks (brise-soleil) are extruded louvered units mounted on building facades to control shading and airflow. NBK's TERRART-BAGUETTE line, for example, uses ceramic pipe elements up to 6 feet long in square, circular, or oblong profiles. Specifiers often use them over window areas or to build open, ventilated facades.

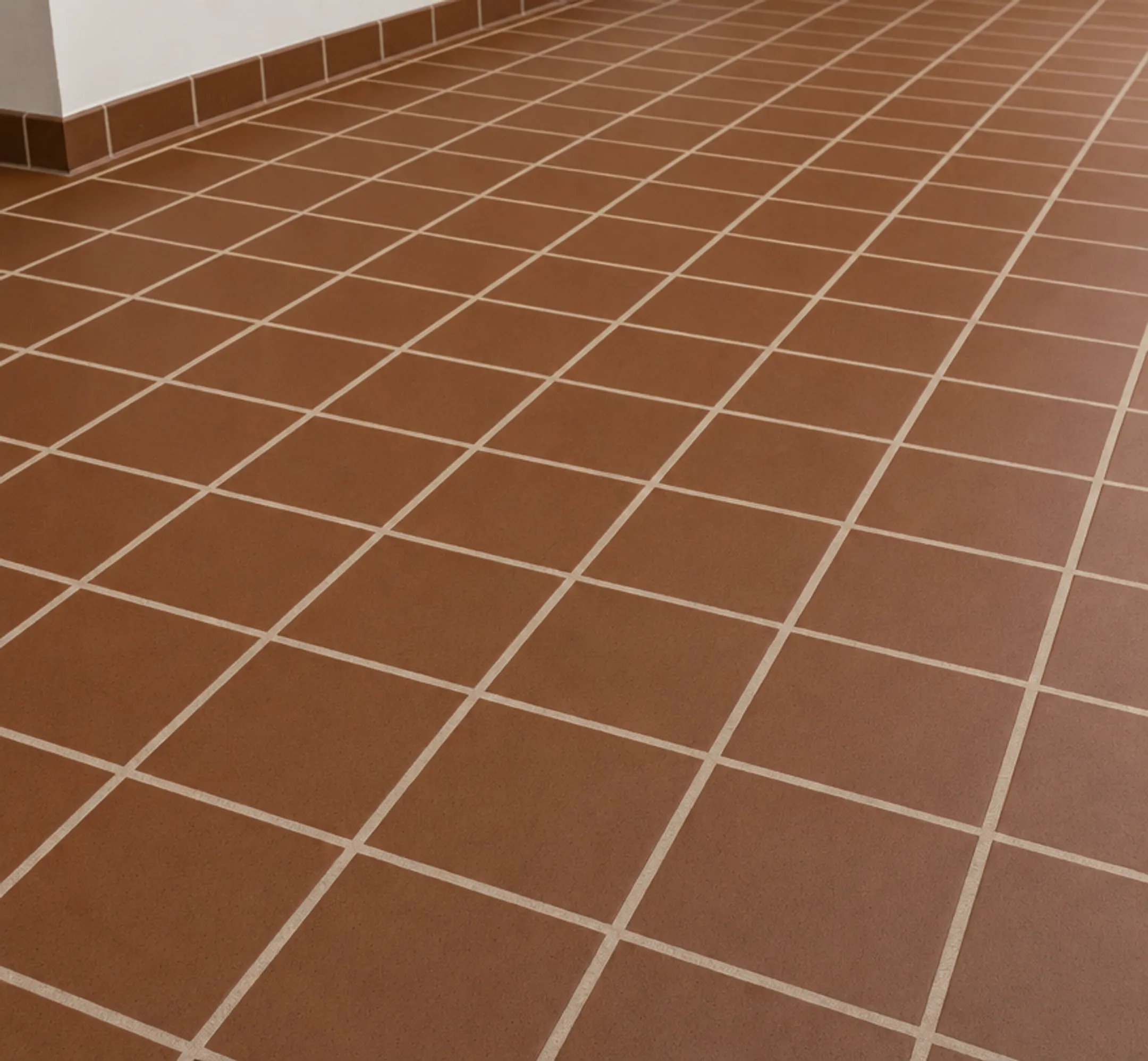

Quarry and paver tiles remain the classic extruded application:
- Summitville's #10 Red quarry tile ships in 6×6×1/2-inch and 4×8×1-3/16-inch formats with smooth or abrasive surfaces
- The same line offers chemical-resistant industrial floor brick for demanding plant environments
- Florida Tile's porcelain pavers cover walkways, patios, pool decks, and driveways
These formats sit alongside dry-pressed and handmade options, but extrusion is still the practical route when thickness, profile depth, or structural shape drives the specification.
Choosing the Right Extruded Tile for Your Project
Specification comes down to matching tile properties to real conditions:
- Exposure — interior or exterior, and what climate the tile will face
- Traffic load — light residential foot traffic versus industrial or commercial volume
- Slip resistance — check DCOF ratings; ANSI A137.1 sets a 0.42 minimum wet DCOF for level interior areas expected to get wet
- Desired texture — flat and uniform, or dimensional and sculptural
An architectural sales representative helps you get these details right before they turn into costly mismatches. SpecCeramics has specialized in commercial construction and architectural markets since 1986, working from a design library that includes collections from manufacturers in Italy, Spain, and the United States.
Showroom consultations let you physically compare extruded and pressed samples before committing to a spec, which helps catch fit and finish issues before the project is underway.
Frequently Asked Questions
What does extruded tile mean?
Extruded tile is formed by forcing moist clay through a shaped die into a continuous profile, then cutting, drying, and firing it. This differs from dry pressing, which compacts clay powder in a mold under hydraulic force.
What are the different types of tiles?
Ceramic tile production generally falls into three categories: extruded (die-formed), dry-pressed (mold-compacted), and handmade or artisanal tiles shaped by hand. Each offers different consistency, strength, and design characteristics.
Are extruded tiles good for outdoor use?
Yes. Their dense body, frost resistance when properly rated, and naturally textured surface make them well-suited to exteriors. Confirm the manufacturer's exterior-use rating and detail joints carefully—water intrusion at the grout line can still cause failure.
How do extruded tiles compare in cost to pressed tiles?
Costs depend on tooling, profile complexity, and production volume rather than a universal rule. Extrusion runs can be slower for complex profiles, which may affect pricing on certain product lines.
Can extruded tiles be used indoors?
Yes. Fluted cladding and dimensional accent walls are popular interior uses, and dense extruded quarry tile also holds up well in heavy-traffic commercial flooring.
How do I choose between extruded and pressed tile for my project?
Match the method to exposure, traffic load, and the look you need—extruded for body strength and dimensional texture, pressed for broad finish and format range. SpecCeramics' architectural sales team can compare both in the showroom or by quote before you lock the spec.
