Yet ceramic tile specifications remain confusing. Architects, contractors, and homeowners routinely mix up ANSI grades, CSI codes, and sizing rules. Terms like "rectified," "V-rating," and "DCOF" get thrown around without clear definitions.
This guide breaks down the standards, classifications, and practical rules you need to write or read a ceramic tile spec correctly, without the guesswork.
Key Takeaways
- ANSI A137.1 governs U.S. ceramic tile grades, sizing, and performance testing
- CSI MasterFormat Section 09 30 00 is where tile specs live in construction documents
- The 1/3 offset rule reduces visible lippage in large-format tile layouts
- Water absorption, V-ratings, and slip resistance are non-negotiable spec criteria
- Engage a tile specialist early to match technical requirements to the right product
What Is a Ceramic Tile Specification and Why It Matters
A tile specification is the documented set of technical requirements — material, size, grade, performance rating, and installation method — that ensures the right product ends up in the right application. That document is the paper trail that protects everyone on the project.
The Construction Specifications Institute frames good specs around four principles, known as the 4 Cs: Clear, Concise, Correct, Complete. Incomplete Division 09 specs create real risk. When a spec just says "install per manufacturer-approved system," installers are left guessing, and often default to whatever is easiest rather than what fits the application.
Who relies on these specs?
- Architects and designers, who set performance and aesthetic requirements
- General contractors, who need clear installation parameters
- Manufacturers, who certify products against tested classifications
- Property owners, who ultimately live with the results
Because every stakeholder depends on that clarity, getting the spec right before bid day matters. SpecCeramics' architectural sales team works with design professionals to turn project requirements into precise tile specifications, using showroom consultations and design-library resources to compare options before they are locked into a contract document.
Understanding ANSI A137.1: The Standard for Ceramic Tile
ANSI A137.1, developed and published by the Tile Council of North America (TCNA), is the American National Standard covering ceramic tile quality, testing, and classification. It's the document every U.S. tile spec should reference.
Tile Grades
The standard identifies four grade categories:
- Standard Grade – the baseline for quality ceramic tile
- Second Grade – tile with more variation, typically used where appearance is less critical
- Decorative Tile – accent and trim pieces
- Specialty Tile – products manufactured to unique specifications

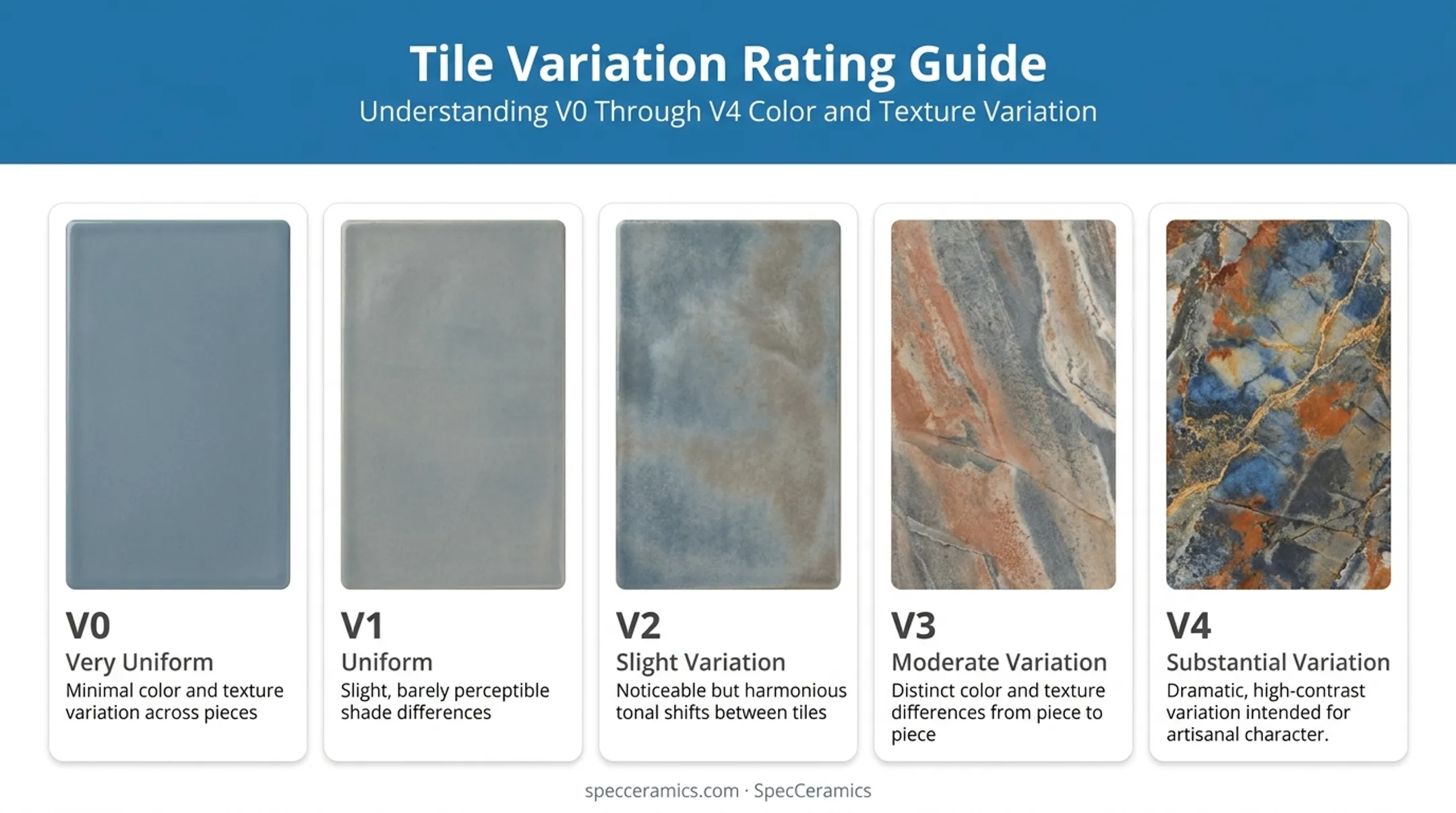

V-Ratings: Measuring Visual Variation
The V-rating system quantifies expected color and texture variation across a production run:
- V0 – Very Uniform: minimal shade differences, smooth texture
- V1 – Uniform: minor differences within a run
- V2 – Slight Variation: texture or pattern differences are visible within similar colors
- V3 – Moderate Variation: one tile hints at what to expect, but variation can be significant
- V4 – Substantial Variation: dramatic tile-to-tile differences, producing a one-of-a-kind installation
Always review a physical sample of V3 or V4 product before committing. What looks good in a photo can surprise you across a full floor.
Water Absorption and Porcelain Certification
Water absorption testing under ASTM C373 determines whether a tile qualifies as porcelain. Tile with absorption of 0.5% or less earns porcelain (impervious) classification. Standard ceramic tile allows higher absorption, which affects where it can be used.
That distinction matters at scale. According to TCNA's Q1 2026 U.S. Ceramic Tile Market Update, the U.S. consumed 563.7 million square feet of ceramic tile in a single quarter—volume where clear absorption classes help limit wet-area failures and warranty claims.
For wet areas and exteriors, specify low-absorption, porcelain-certified tile. On high-traffic commercial floors, pair that with documented PEI and slip-resistance ratings rather than relying on V-rating alone.
CSI Codes and Where Tile Specs Fit in Construction Documents
If you've searched for the CSI code for ceramic tile, here's the answer: it falls under MasterFormat Division 09 – Finishes, specifically Section 09 30 00 (Tiling).

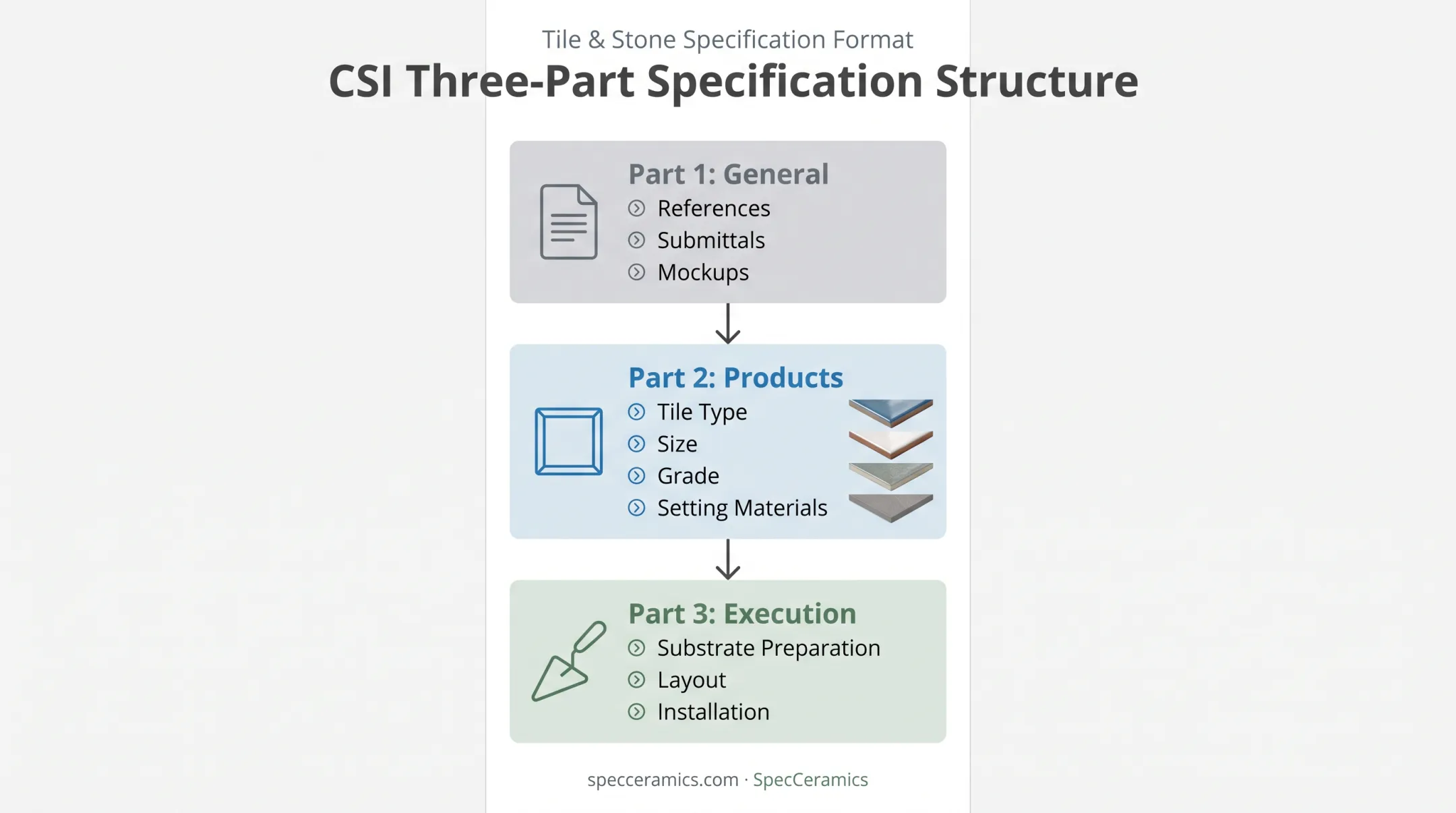

The Three-Part Spec Structure
A properly written tile section follows the standard CSI format:
- Part 1 – General: references, submittals, quality assurance, mockup requirements, delivery and storage conditions
- Part 2 – Products: tile type, size, grade, setting materials, grout, membranes, and performance requirements
- Part 3 – Execution: substrate prep, layout, installation method, movement joints, cleaning, and protection
Why Vague Language Fails
The three-part structure only works if the language inside each part is specific. Specs that lean on generic phrases like "manufacturer-approved system" leave critical decisions unmade. Which membrane? Which mortar? Who's responsible if two manufacturers' products aren't compatible?
A stronger clause does four things:
- Names the specific tile, setting materials, and accessories required
- States the performance criteria (water absorption, slip resistance, PEI class)
- Requires written compatibility confirmation when combining products from different manufacturers
- Defines mockup approval and field inspection procedures
Skipping these details doesn't simplify the project. It just shifts the risk downstream to whoever installs it.
Tile Size, Thickness, and Installation Rules to Specify Correctly
Ceramic tile is manufactured across a huge range, from tiny mosaics to large-format panels exceeding 48x110 inches. One critical detail specifiers often miss: nominal size and actual measured size are rarely identical.
Rectified vs. Non-Rectified Tile
Rectified tile is precision-cut after firing for exact, consistent dimensions. This affects grout joint specification directly:
- Rectified tile can use tighter joints, commonly 2mm minimum
- Non-rectified tile typically needs 3mm or wider joints to accommodate size variation

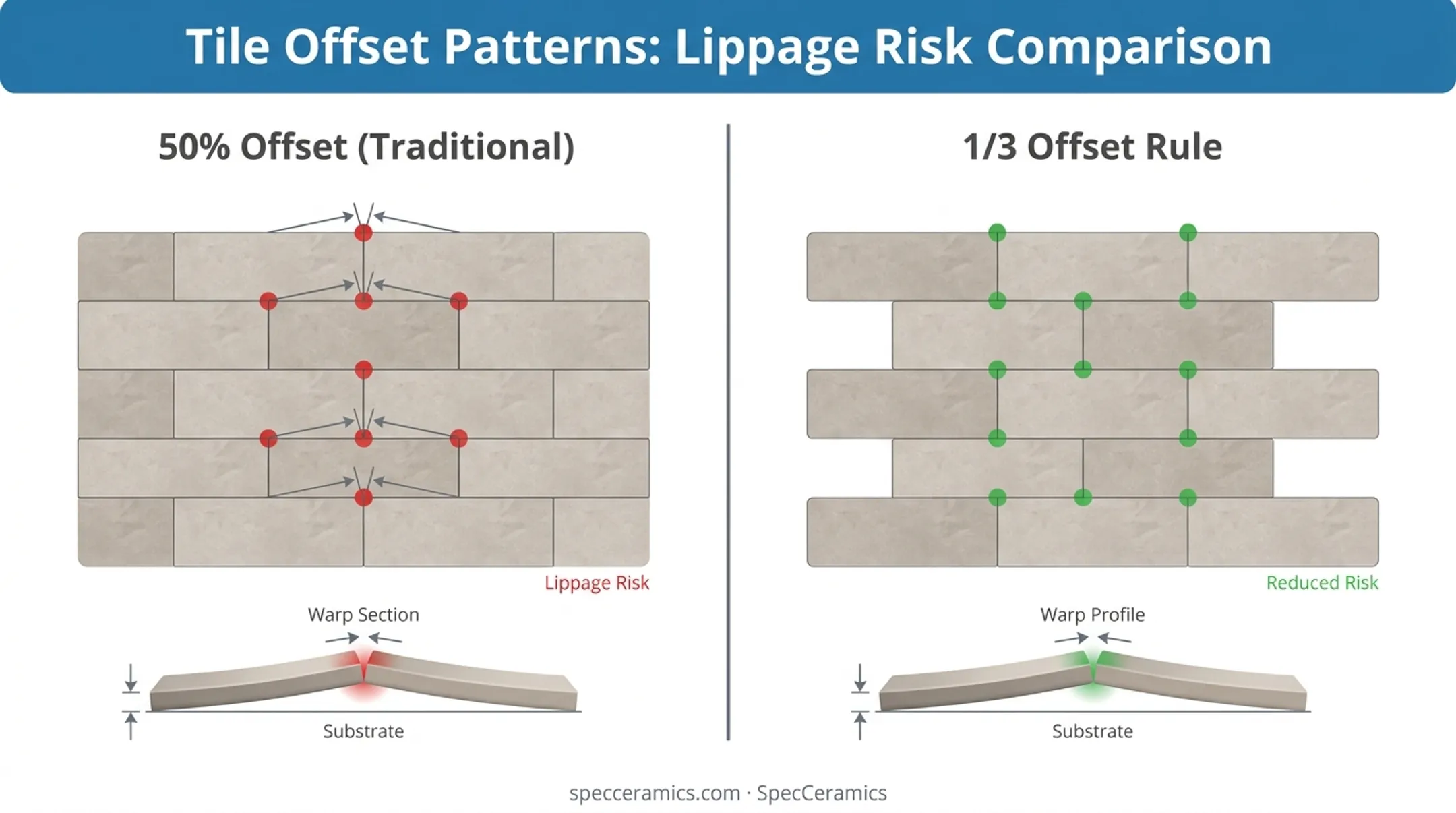

The 1/3 Offset Rule
Long rectangular and large-format tiles should be offset by no more than one-third of the tile's length, not the traditional 50% running bond.
Longer tiles are more prone to slight warping during manufacturing. A 50% offset lines up the high points of adjacent tiles' warp, creating visible lippage (the uneven edge-to-edge step you can feel underfoot). A 1/3 offset staggers the warp pattern and reduces that risk.
Thickness and Transitions
Tile thickness commonly runs from about 6.8mm to over 12mm, though it varies by product line. Thickness affects:
- Transition strip selection at doorways
- Trim compatibility
- Finished floor height relative to adjoining surfaces
Specification checkpoints to confirm before finalizing:
- Approved application (wall, floor, or wet area)
- Slip resistance rating for the specific use case
- Minimum grout joint width
- Edge type (pressed vs. rectified)
Specifying tile by size or thickness alone isn't enough. Confirm the product's tested approval for its intended surface on the manufacturer's technical data sheet before it goes into the contract documents.
Matching Tile Specifications to Project Type
Commercial and residential tile specs share the same foundation, but the performance bar shifts with traffic and exposure.
Commercial projects typically require:
- Documented PEI ratings for foot-traffic durability (PEI 0–5; PEI 5 for heavy commercial and institutional floors)
- Slip-resistance data tied to a recognized test method
- Formal submittal and mockup documentation for approval trails
Residential projects usually need:
- PEI ratings matched to room use (walls and light-traffic floors can run lower than commercial)
- Durability balanced with aesthetics and maintenance
- Lighter documentation than full commercial submittal packages

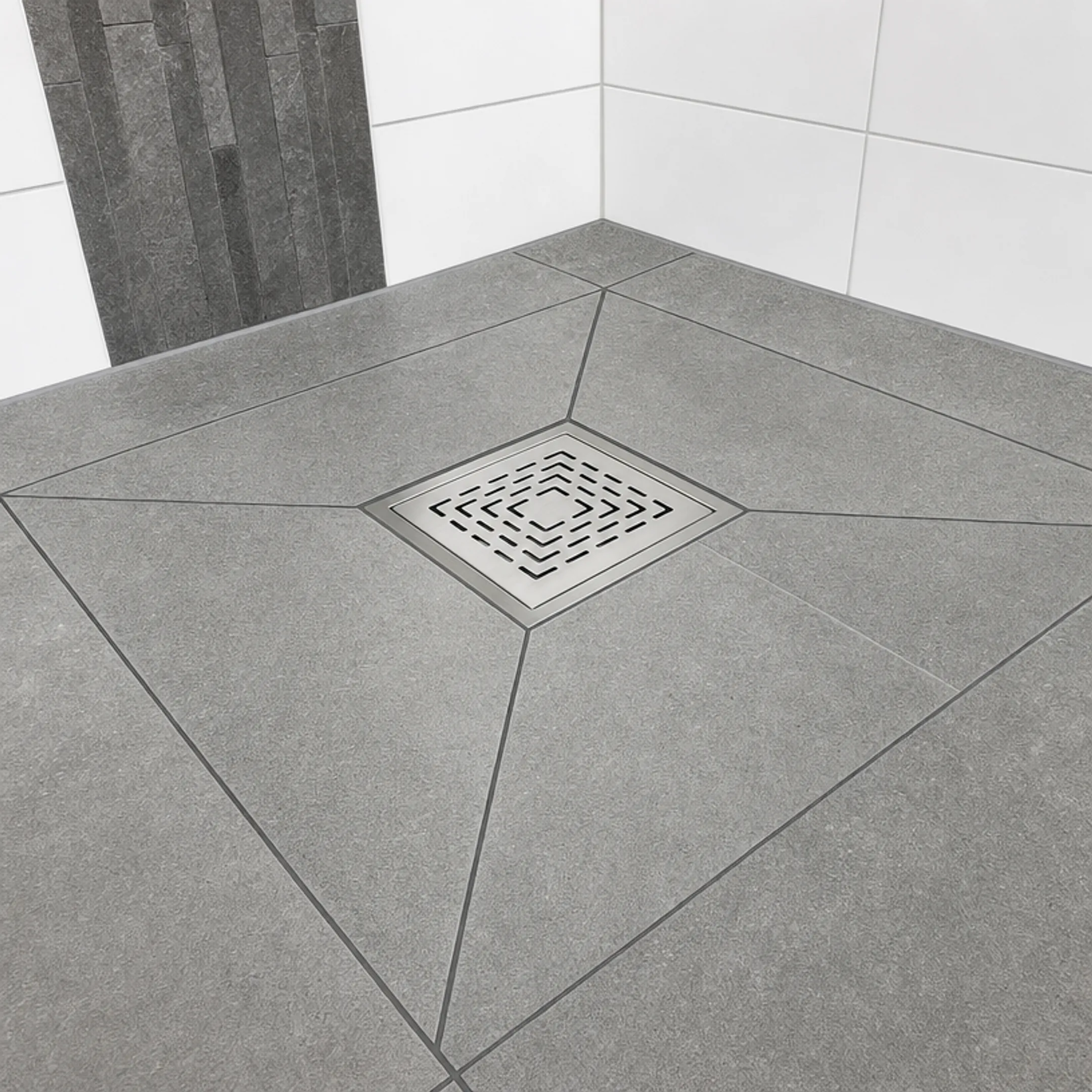

Wet areas—showers, pool decks, spas—cut across both project types and need:
- Low water-absorption ratings
- Slip resistance suited to barefoot or wet-foot traffic
- Waterproofing, slope, and drainage in the same section; never tile alone
For large commercial or architectural projects, comparing manufacturer specifications side by side saves headaches later. SpecCeramics supports architects and developers across its western U.S. service territories with showroom consultation and design-library resources that simplify side-by-side comparison beyond data sheets alone.
Frequently Asked Questions
What is the CSI code for ceramic tile?
Ceramic tile falls under MasterFormat Division 09, Section 09 30 00 (Tiling). This section covers material specs, setting materials, and installation requirements in construction documents.
What is the 1/3 rule for tiles?
The 1/3 rule recommends offsetting tile rows by no more than one-third the tile's length, rather than a traditional 50% offset, to reduce visible lippage in longer or large-format tiles.
What is the difference between ceramic and porcelain tile specifications?
Porcelain is defined by water absorption of 0.5% or less under ASTM C373. Standard ceramic tile allows higher absorption, which limits its suitability for wet or outdoor applications.
Do residential projects need to follow ANSI A137.1?
It's not always legally mandated for homes, but following ANSI grades and ratings ensures durability and performance. Reputable suppliers treat it as standard practice regardless of project type.
How do I know if a tile is rated for floor use?
Floor-rated tiles are tested for slip resistance and load-bearing capacity under ANSI/TCNA standards. This information should appear on the product's technical data sheet, not just the box label.
Who should I consult to finalize a tile specification for my project?
Consult a SpecCeramics architectural or residential sales representative with access to manufacturer technical data and design-library resources. They can confirm the right product for your application before it goes into contract documents.
